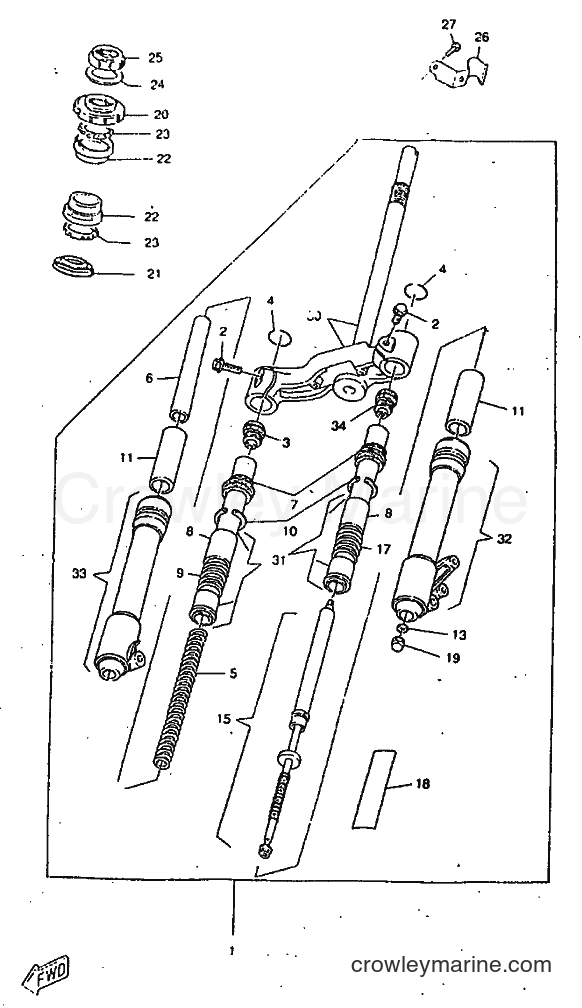

1998 Scooter CW50RSX - CW50RSX (5AY3) [999] FRONT FORK diagram
![Yamaha Motors CW50RSX (5AY3) [999] - FRONT FORK](https://cdn.crowleymarine.com/yamaha/CJT4g7s1.png)
1
Required: 1
FRONT FORK ASSY
Price unavailable
2
Required: 2
. SCREW, SPECIAL
Price unavailable
3
Required: 1
. BOLT, CAP
Price unavailable
4
Required: 2
. RING, SNAP
Price unavailable
5
Required: 1
. SPRING, FRONT FORK
Price unavailable
6
Required: 1
. TUBE, INNER
Price unavailable
7
Required: 2
. SEAL, DUST
Price unavailable
8
Required: 2
. GUIDE PLUNGER
Price unavailable
9
Required: 2
. SPRING, REBOUND
Price unavailable
10
Required: 2
. CIRCLIP
Price unavailable
11
Required: 2
. STOPPER BOUND
Price unavailable
13
Required: 1
. WASHER, SPECIAL 1
Price unavailable
15
Required: 1
. DAMPER ASSY
Price unavailable
17
Required: 1
. SPRING
Price unavailable
18
Required: 2
. EMBLEM
Price unavailable
19
Required: 1
. NUT
Price unavailable
20
Required: 1
RACE, BALL 1
Price unavailable
21
Required: 1
RACE, BALL 4
Price unavailable
22
Required: 2
RACE, BALL 2
Price unavailable
23
Required: 2
PLANE BEARING, STEERING
Price unavailable
24
Required: 11
WASHER
Price unavailable
25
Required: 1
NUT, FITTING 1
Price unavailable
26
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
In stock
Only 4 remaining
$4.67
You save $0.82
31
Required: 1
. TUBE, INNER 1
Price unavailable
32
Required: 1
. TUBE, OUTER (LEFT)
Price unavailable
33
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
34
Required: 1
. BOLT, CAP
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
