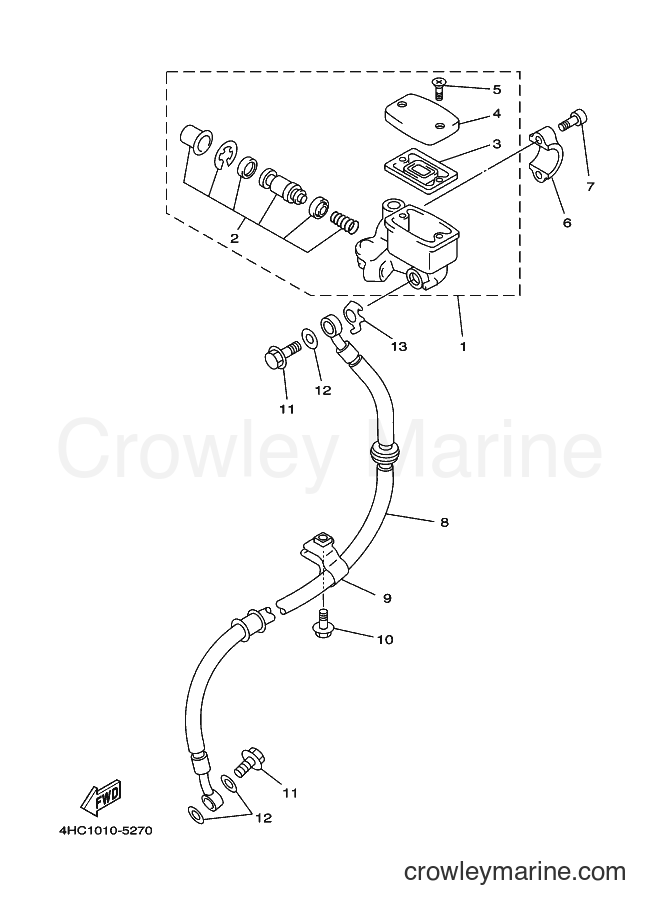

1997 Scooter YP250 - YP250 (4UC2) [030] FRONT MASTER CYLINDER diagram
![Yamaha Motors YP250 (4UC2) [030] - FRONT MASTER CYLINDER](https://cdn.crowleymarine.com/yamaha/b1TZph9o.png)
1
Yamaha Motors
Master Cylinder Assembly5CG-2583T-12-00
Required: 1
MASTER CYLINDER ASSY
Supersedes: 2KF-25850-00-00
$212.95
You save $38.04
2
Yamaha Motors
Master Cylinder Kit5VK-25807-00-00
Required: 1
. CYLINDER KIT, MASTER
Supersedes: 59X-W0041-00-00
$65.44
You save $11.55
3
Yamaha Motors
Reservoir Diaphragm55U-25854-00-00
Required: 1
. DIAPHRAGM, RESERVOIR
$26.34
You save $4.65
4
Yamaha Motors
FRONT RESERVOIR CAP2KF-25852-02-00
Required: 1
. CAP, RESERVOIR
Supersedes: 2KF-25852-01-00
$25.49
You save $4.50
5
Yamaha Motors
Flat Screw98707-04012-00
Required: 2
. SCREW, FLAT HEAD
Supersedes: 98706-04012-00
$1.57
You save $0.28
6
Yamaha Motors
Master Cylinder Bracket56A-25867-00-00
Required: 1
BRACKET, MASTER CYLINDER
$27.19
You save $4.80
-50%
7
Yamaha Motors
Bolt (4MY)91317-06025-00
Required: 2
BOLT,HEX.SOCKET HEAD
In stock
Only 1 remaining
$1.33
You save $1.33
8
Required: 1
HOSE, BRAKE 1
Price unavailable
9
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
10
Yamaha Motors
Flange Bolt95817-06020-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06020-00
In stock
Only 2 remaining
$2.98
You save $0.52
$10.62
You save $1.87
12
Yamaha Motors
Plate Washer90201-10118-00
Required: 3
WASHER, PLATE
$3.23
You save $0.57
13
Required: 1
WASHER, LOCK
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
