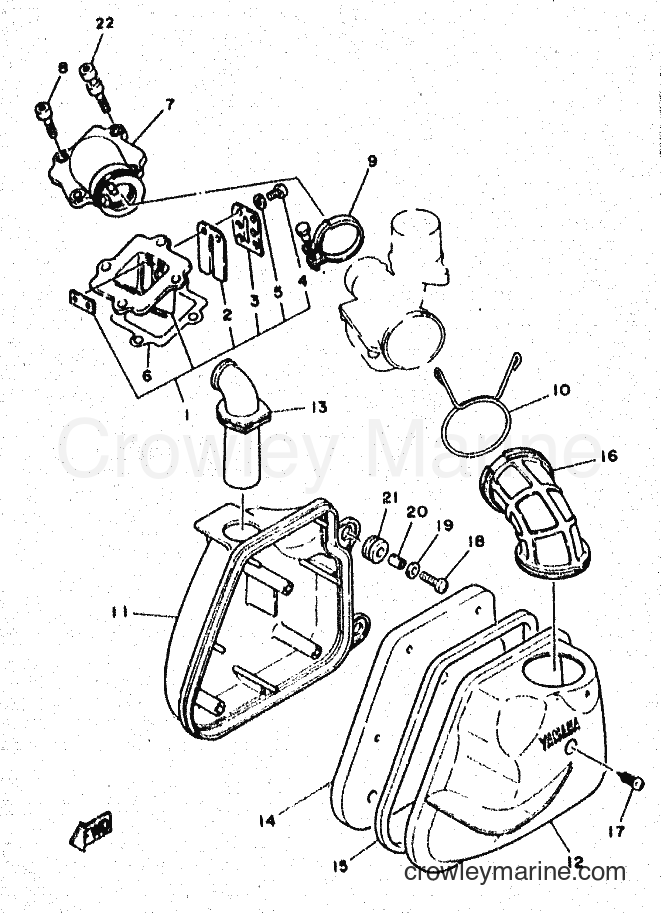

1997 Scooter YN50 - YN50 (5BX2) [999] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN50 (5BX2) [999] - INTAKE
Change View:
1
Required: 1
READ VALVE ASSY
Price unavailable
2
Required: 2
･REED, VALVE ASSY
Price unavailable
3
Required: 2
･STOPPER, REED VALVE
Price unavailable
PAN SCREW
4
Yamaha Motors
PAN SCREW98517-03008-00
Required: 4
･SCREW, PAN HEAD
Supersedes: 98507-03008-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Washer (3SX)
5
Yamaha Motors
Washer (3SX)92907-03600-00
Required: 4
･WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
6
Required: 1
GASKET, VALVE SEAT
Price unavailable
7
Required: 1
MANIFOLD, INTAKE
Price unavailable
Bolt
8
Yamaha Motors
Bolt91317-06020-00
Required: 4
BOLT
Supersedes: 91318-06020-00
Cross Ship
Leaves in 2-5 days
$2.75
$2.34
You save $0.41
More details
9
Required: 1
CLAMP, HOSE
Price unavailable
Scissor Clip
10
Yamaha Motors
Scissor Clip90467-24140-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
11
Required: 1
CASE, AIR CLEANER 1
Price unavailable
12
Required: 1
CASE, CLEANER CASE 1
Price unavailable
13
Required: 1
DUCT
Price unavailable
14
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
15
Required: 1
SEAL
Price unavailable
16
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
19
Required: 2
WASHER, PLATE
Price unavailable
COLLAR
20
Yamaha Motors
COLLAR90387-067V1-00
Required: 2
COLLAR
Supersedes: 90387-06X06-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
21
Required: 2
GROMMET
Price unavailable
22
Required: 2
BOLT TORX
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
