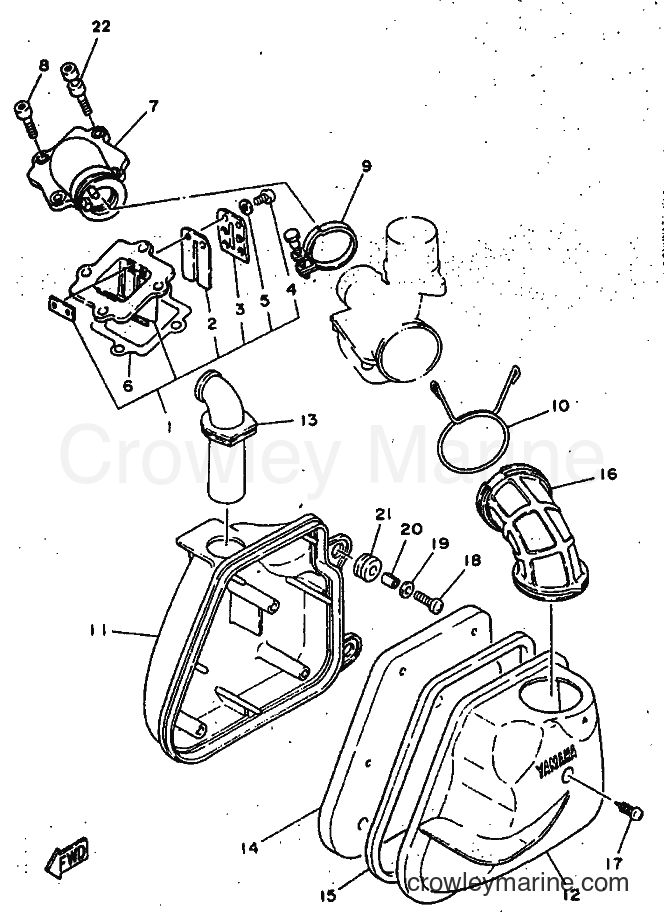

1997 Scooter YN50 - YN50 (5BX1) [010] INTAKE diagram
![Yamaha Motors YN50 (5BX1) [010] - INTAKE](https://cdn.crowleymarine.com/yamaha/AzF8uhjX.png)
1
Required: 1
REED VALVE ASSY
Price unavailable
2
Required: 2
. REED, VALVE
Price unavailable
3
Required: 2
. STOPPER, REED VALVE
Price unavailable
4
Yamaha Motors
PAN SCREW98517-03008-00
Required: 4
. SCREW, PAN HEAD
Supersedes: 98507-03008-00
$2.72
You save $0.48
$8.07
You save $1.42
6
Required: 1
GASKET, VALVE SEAT
Price unavailable
7
Required: 1
MANIFOLD, INTAKE
Price unavailable
8
Yamaha Motors
Bolt91317-06020-00
Required: 4
BOLT
Supersedes: 91318-06020-00
$2.34
You save $0.41
9
Required: 1
CLIP
Price unavailable
$5.52
You save $0.97
11
Required: 1
CASE, AIR CLEANER 1
Price unavailable
12
Required: 1
CAP, CLEANER CASE 1
Price unavailable
13
Required: 1
DUCT
Price unavailable
14
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
15
Required: 1
SEAL
Price unavailable
16
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
17
Yamaha Motors
97780-50125-0097780-50525-00
Required: 3
SCREW, TAPPING
Supersedes: 97701-50525-00
In stock
Only 4 remaining
$1.36
You save $0.24
18
Yamaha Motors
Pan Head Screw98517-06020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98506-06020-00
In stock
Only 5 remaining
$2.00
You save $0.35
19
Required: 2
WASHER, PLATE
Price unavailable
$2.72
You save $0.48
In stock
Only 4 remaining
$2.72
You save $0.48
22
Yamaha Motors
Bolt (4FM)90109-06282-00
Required: 2
BOLT
Supersedes: 90109-060G4-00
$4.67
You save $0.82
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
