1997 Scooter YN50 - YN50 (5BX1) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

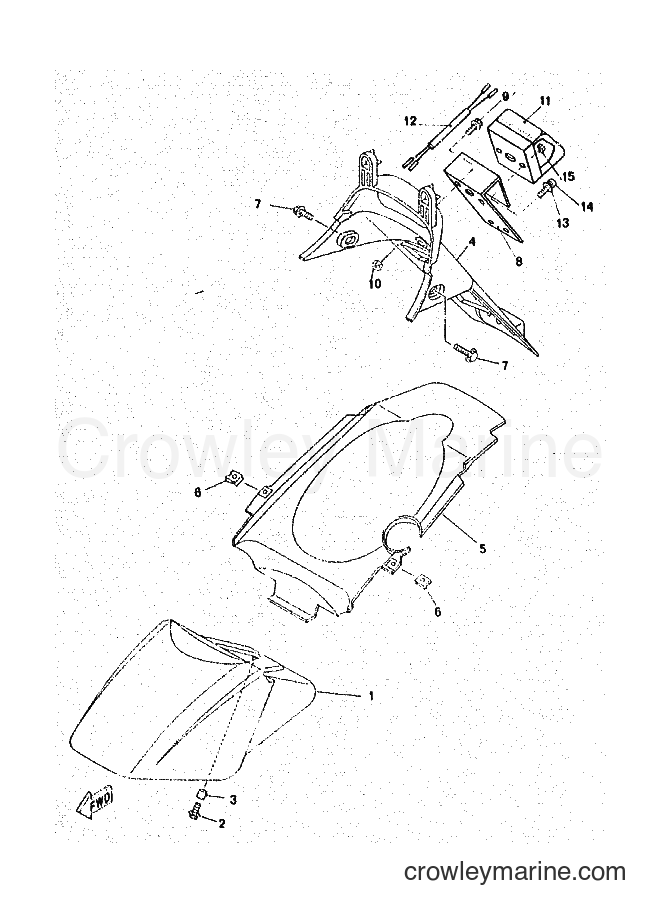

Yamaha Motors YN50 (5BX1) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
1
Required: 1
FENDER, FRONT
Price unavailable
95811-06016-00
2
Yamaha Motors
95811-06016-0095801-06016-00
Required: 3
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
90387-06113-00
3
Yamaha Motors
90387-06113-0090387-060A7-00
Required: 3
COLLAR
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
4
Required: 1
FENDER, REAR
Price unavailable
5
Required: 1
GUARD, MUD
Price unavailable
5
Required: 1
GUARD, MUD
Price unavailable
Bolt with Washer
7
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
8
Required: 1
BRACKET
Price unavailable
11
Required: 1
LICENCE LIGHT ASSY
Price unavailable
12
Required: 1
CORD, LICENCE LIGHT
Price unavailable
13
Required: 2
SCREW, PAN HEAD
Price unavailable
Spring Washer
14
Yamaha Motors
Spring Washer92907-05100-00
Required: 2
WASHER, SPRING
Supersedes: 92906-05100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Nut
15
Yamaha Motors
Nut95303-05600-00
Required: 2
NUT
Supersedes: 95301-05600-00
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
