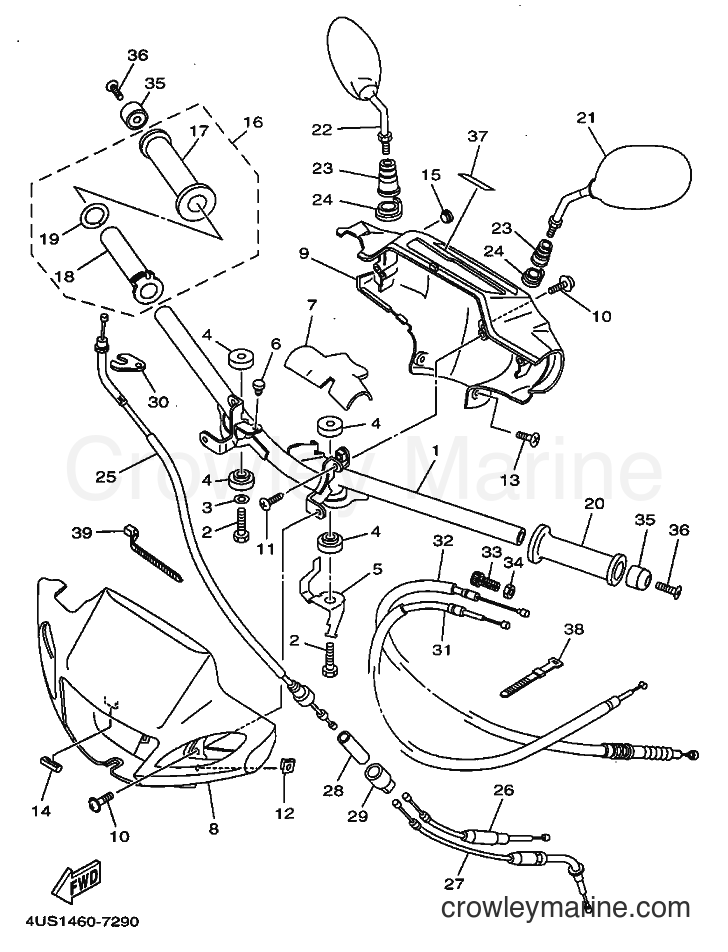

1997 Scooter V110 - V110 (4VM1) [999] STEERING HANDLE & CABLE diagram
![Yamaha Motors V110 (4VM1) [999] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/zjPPMjDT.png)
1
Required: 1
HANDLE
Price unavailable
1
Required: 1
HANDLE
Price unavailable
2
Yamaha Motors
Bolt97017-08016-00
Required: 3
BOLT
Supersedes: 97007-08016-00
$8.07
You save $1.42
3
Yamaha Motors
Plate Washer90201-08612-00
Required: 2
WASHER, PLATE
$8.07
You save $1.42
4
Required: 6
DAMPER
Price unavailable
5
Required: 1
STAY, AUDIO PILOT
Price unavailable
6
Required: 1
DAMPER, SEAT
Price unavailable
7
Required: 1
DAMPER
Price unavailable
8
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
8
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
8
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
8
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
8
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
9
Required: 1
COVER, HANDLEBAR UPPER 2
Price unavailable
10
Yamaha Motors
Screw With Washer90159-05121-00
Required: 3
SCREW, WITH WASHER
Supersedes: 90159-05028-00
$3.82
You save $0.68
In stock
Only 4 remaining
$1.57
You save $0.28
-50%
In stock
Only 1 remaining
$0.50
You save $0.50
13
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
$3.94
You save $0.69
14
Required: 2
DAMPER, LOCATING
Price unavailable
$5.52
You save $0.97
16
Required: 1
GRIP ASSY
Price unavailable
16
Required: 1
GRIP ASSY
Price unavailable
17
Required: 1
. GRIP (RIGHT)
Price unavailable
17
Required: 1
. GRIP (RIGHT)
Price unavailable
18
Required: 1
. TUBE, THROTTLE GUIDE
Price unavailable
18
Required: 1
. TUBE, THROTTLE GUIDE
Price unavailable
19
Yamaha Motors
Plate Washer90201-261L1-00
Required: 1
. WASHER, PLATE
$9.77
You save $1.72
20
Required: 1
GRIP
Price unavailable
20
Required: 1
GRIP
Price unavailable
21
Required: 1
REAR VIEW MIRROR ASSY(LEFT)
Price unavailable
22
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
23
Required: 2
BOOT 1
Price unavailable
24
Required: 2
GROMMET
Price unavailable
25
Required: 1
CABLE, THROTTLE 1
Price unavailable
26
Required: 1
CABLE, THROTTLE 2
Price unavailable
27
Required: 1
CABLE, PUMP
Price unavailable
28
Required: 1
CONNECTOR, CABLE
Price unavailable
29
Required: 1
CAP
Price unavailable
30
Required: 1
HOLDER
Price unavailable
31
Required: 1
CABLE, STARTER 1
Price unavailable
32
Required: 1
CABLE, CLUTCH
Price unavailable
33
Yamaha Motors
BOLT90123-08002-00
Required: 1
BOLT
Supersedes: 90123-08046-00
$8.92
You save $1.57
34
Required: 1
NUT
Price unavailable
35
Required: 2
END, GRIP
Price unavailable
-50%
36
Yamaha Motors
Flat Head Screw98707-06030-00
Required: 2
SCREW, FLAT HEAD
In stock
Only 3 remaining
$4.00
You save $4.00
37
Required: 1
EMBLEM
Price unavailable
38
Required: 2
BAND, SWITCH CORD
Price unavailable
39
Required: 1
CLAMP, HOSE
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
