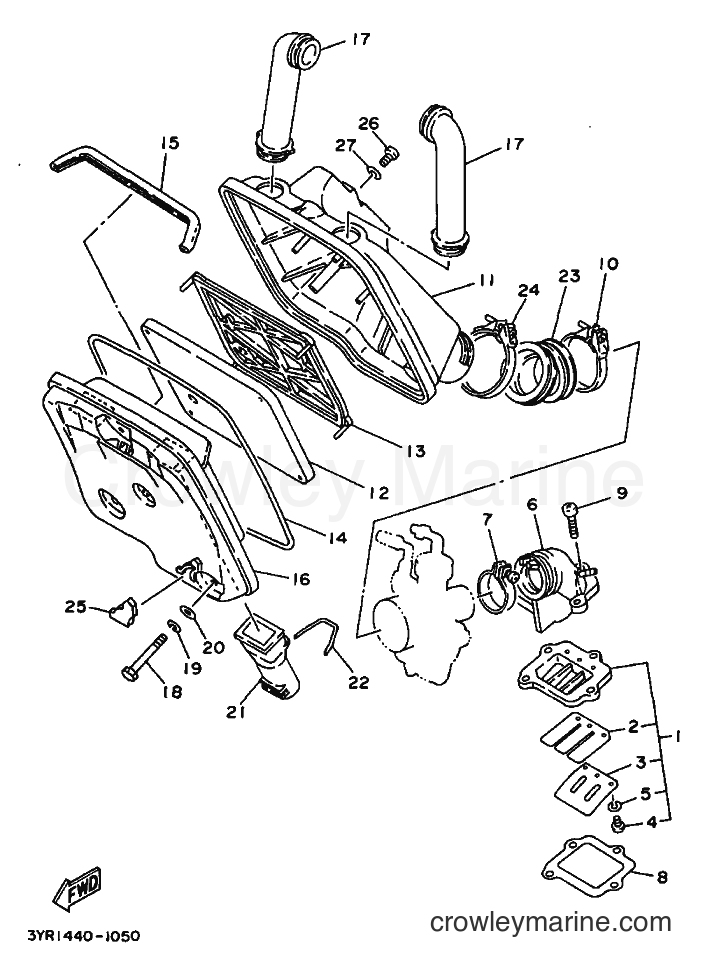

1997 Scooter V110E - V110E (4US1) [999] INTAKE diagram
![Yamaha Motors V110E (4US1) [999] - INTAKE](https://cdn.crowleymarine.com/yamaha/MdunMeis.png)
1
Required: 1
REED VALVE ASSY
Price unavailable
2
Required: 1
. REED, VALVE
Price unavailable
3
Required: 1
. STOPPER, REED VALVE
Price unavailable
4
Yamaha Motors
PAN SCREW98517-03008-00
Required: 3
. SCREW, PAN HEAD
Supersedes: 98507-03008-00
$2.72
You save $0.48
5
Required: 3
. WASHER
Price unavailable
6
Required: 1
MANIFOLD, INTAKE
Price unavailable
$8.49
You save $1.50
8
Required: 1
GASKET, VALVE SEAT
Price unavailable
9
Yamaha Motors
Pan Head Screw98517-06020-00
Required: 4
SCREW, PAN HEAD
Supersedes: 98507-06020-00
In stock
Only 5 remaining
$3.60
You save $-1.25
$15.72
You save $2.77
11
Required: 1
CASE, AIR CLEANER 1
Price unavailable
12
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
13
Required: 1
GUIDE
Price unavailable
14
Required: 1
SEAL
Price unavailable
15
Required: 1
SEAL
Price unavailable
16
Required: 1
CAP, CLEANER CASE 1
Price unavailable
17
Required: 2
JOINT
Price unavailable
19
Yamaha Motors
Spring Washer92907-06100-00
Required: 3
WASHER, SPRING
In stock
Only 1 remaining
$3.81
You save $-2.51
20
Yamaha Motors
Plate Washer92907-06600-00
Required: 3
WASHER, PLATE
In stock
5+ in stock
$0.85
You save $0.15
21
Required: 2
PIPE, SILENCER
Price unavailable
22
Required: 2
SPRING
Price unavailable
23
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
24
Yamaha Motors
1AE-13575-00-0090460-53200-00
Required: 1
CLAMP, HOSE
Supersedes: 90460-53106-00
$3.61
You save $0.64
25
Required: 1
PROTECTOR
Price unavailable
26
Yamaha Motors
Pan Head Screw98507-06010-00
Required: 2
SCREW, PAN HEAD
$3.27
You save $0.58
27
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$0.85
You save $0.15
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
