1997 Scooter V110 - V110 (4WJ1) [999] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

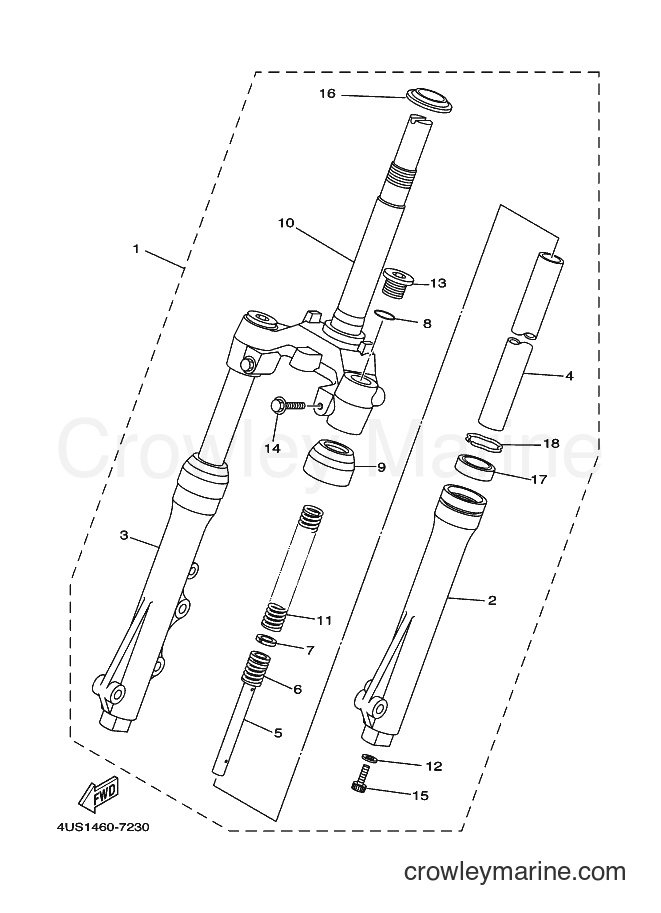

Yamaha Motors V110 (4WJ1) [999] - FRONT FORK
Change View:
1
Required: 1
FRONT FORK ASSY
Price unavailable
2
Required: 1
. TUBE, OUTER (LEFT)
Price unavailable
3
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
4
Required: 2
. INNER TUBE COMP.1
Price unavailable
5
Required: 2
. CYLINDER COMP., FRONT FORK
Price unavailable
6
Required: 2
. SPRING, SUB
Price unavailable
7
Required: 2
. RING, PISTON
Price unavailable
8
Required: 2
. O-RING
Price unavailable
9
Required: 2
. SEAL, DUST
Price unavailable
10
Required: 1
. UNDER BRACKET COMP.
Price unavailable
11
Required: 2
. SPRING, FRONT FORK
Price unavailable
Tank Cap Gasket
12
Yamaha Motors
Tank Cap Gasket509-23158-L0-00
Required: 2
. GASKET
Supersedes: 509-F3158-L0-00
Cross Ship
Leaves in 2-5 days
$17.99
$15.29
You save $2.70
More details
13
Required: 2
. BOLT, CAP
Price unavailable
14
Required: 2
. BOLT 1
Price unavailable
15
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
BALL RACE
16
Yamaha Motors
BALL RACEB6E-23411-00-00
Required: 1
. RACE, BALL 1
Supersedes: 156-23411-00-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
17
Required: 2
. OIL SEAL
Price unavailable
Oil Seal Clip
18
Yamaha Motors
Oil Seal Clip1T8-23156-00-00
Required: 2
. CLIP, OIL SEAL
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
