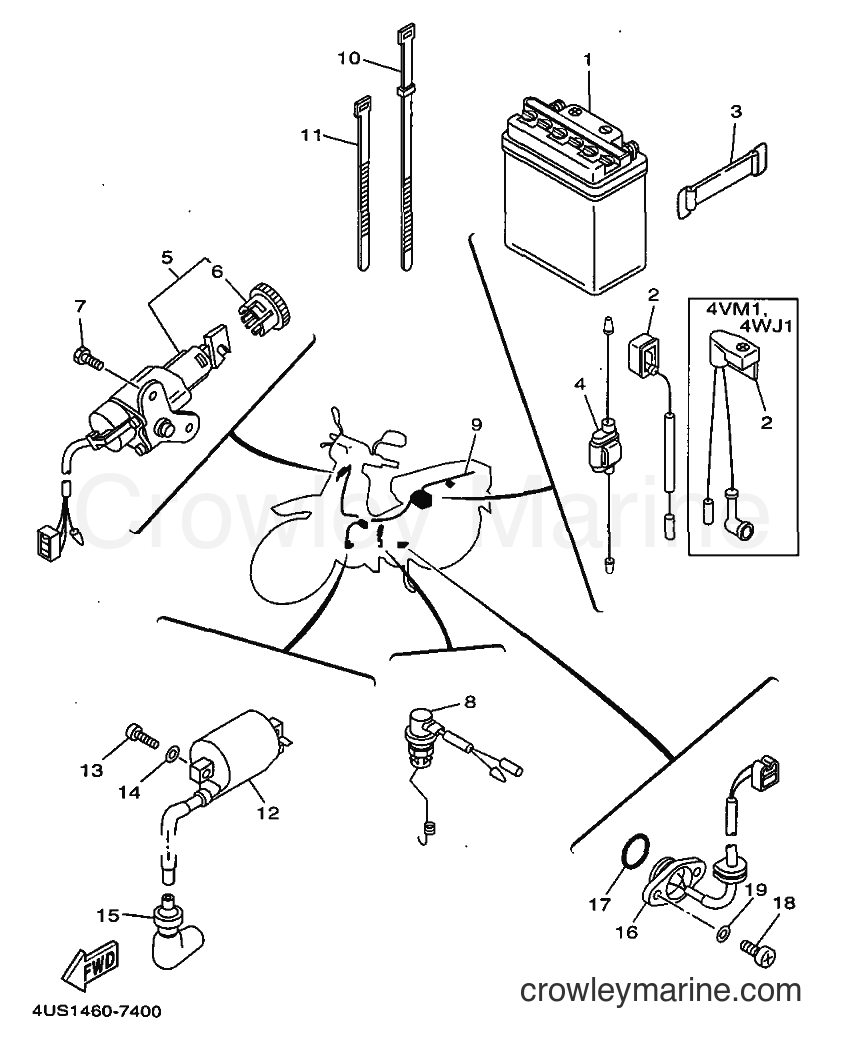

1997 Scooter V110E - V110E (4WH1) [999] ELECTRICAL 1 diagram
![Yamaha Motors V110E (4WH1) [999] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/r57ePd9n.png)
1
Required: 1
BATTERY ASSY
Price unavailable
1
Required: 1
BATTERY ASSY
Price unavailable
2
Required: 1
WIRE, PLUS LEAD
Price unavailable
2
Required: 1
WIRE, PLUS LEAD
Price unavailable
3
Required: 1
BAND, BATTERY
Price unavailable
4
Required: 1
FUSE HOLDER ASSY
Price unavailable
5
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
6
Required: 1
. CAP, SWITCH
Price unavailable
$8.07
You save $1.42
8
Required: 1
STOP SWITCH ASSY
Price unavailable
9
Required: 1
WIRE HARNESS ASSY
Price unavailable
9
Required: 1
WIRE HARNESS ASSY
Price unavailable
10
Yamaha Motors
Switch Cord Band25G-83936-01-00
Required: 2
BAND, SWITCH CORD
Supersedes: 3AY-H3936-00-00
In stock
Only 1 remaining
$4.67
You save $0.82
11
Required: 2
BAND, SWITCH CORD
Price unavailable
12
Required: 1
IGNITION COIL ASSY
Price unavailable
13
Yamaha Motors
Pan Head Screw98517-06020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06020-00
In stock
Only 5 remaining
$3.60
You save $-1.25
14
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$0.85
You save $0.15
15
Yamaha Motors
4PE-82370-10-004PE-82370-00-00
Required: 1
PLUG CAP ASSY
Supersedes: 81E-82370-20-00
$28.04
You save $4.95
16
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
$8.07
You save $1.42
18
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 2
SCREW, PAN HEAD
In stock
Only 4 remaining
$1.53
You save $0.27
19
Yamaha Motors
Plate Washer92907-05600-00
Required: 2
WASHER, PLATE
$1.98
You save $-0.98
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
