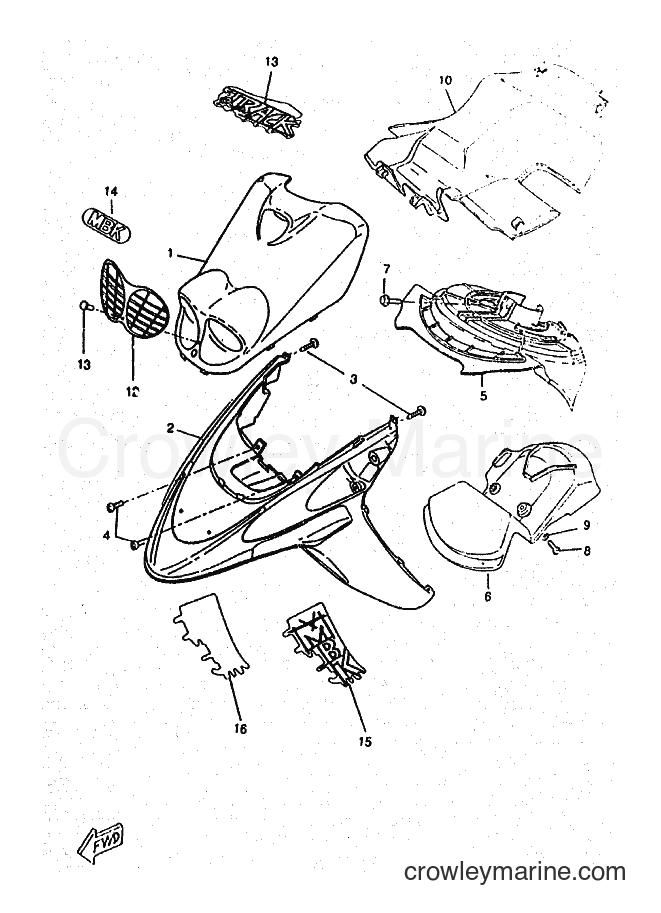

1997 Scooter CW50RSX - CW50RSX (5CD2) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50RSX (5CD2) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 1
FR. MUD GUARD ASSY
Price unavailable
Socket Bolt
4
Yamaha Motors
Socket Bolt98907-06016-00
Required: 2
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
5
Required: 1
FENDER, INNER
Price unavailable
6
Required: 1
FENDER, INNER 2
Price unavailable
90119-06060-00
8
Yamaha Motors
90119-06060-0090119-06052-00
Required: 2
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
10
Required: 1
GUARD, MUD
Price unavailable
12
Required: 1
RIVET
Price unavailable
13
Required: 1
EMBLEM
Price unavailable
14
Required: 1
EMBLEM
Price unavailable
15
Required: 1
GRAPHIC 1
Price unavailable
16
Required: 1
GRAPHIC 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
