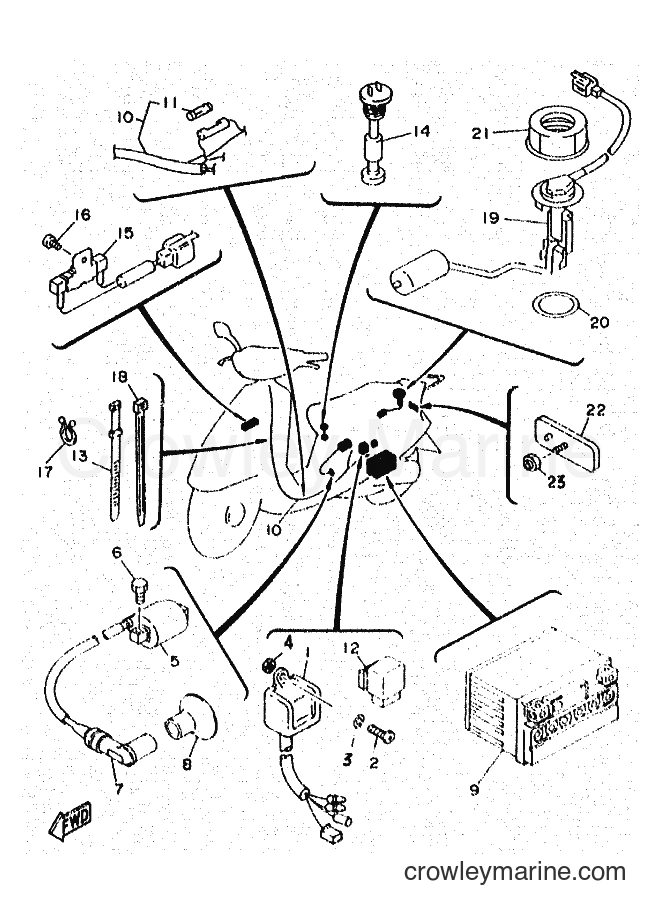

1996 Scooter YA50R - YA50R (4PC5) [999] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YA50R (4PC5) [999] - ELECTRICAL 2
Change View:
CDI UNIT ASSEMBLY
1
Yamaha Motors
CDI UNIT ASSEMBLY3KJ-85540-10-00
Required: 1
C.D.I. UNIT ASSY
Cross Ship
Leaves in 2-5 days
$117.99
$100.29
You save $17.70
More details
2
Required: 1
SCREW, PAN HEAD
Price unavailable
4
Required: 1
NUT, SELF-LOCKING
Price unavailable
IGNITION COIL ASSY
5
Yamaha Motors
IGNITION COIL ASSY3KJ-82310-14-00
Required: 1
IGNITION COIL ASSY
Supersedes: 3KJ-82310-01-00
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details
Hexagon bolt
6
Yamaha Motors
Hexagon bolt97313-06016-00
Required: 2
BOLT
Supersedes: 97301-06016-00
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
Plug Cap Assembly
7
Yamaha Motors
Plug Cap AssemblySPC-LB05F-00-00
Required: 1
PLUG CAP ASSY
Supersedes: 3WG-H2370-10-00
Cross Ship
Leaves in 2-5 days
$28.99
$24.64
You save $4.35
More details
Plug Cap Seal
8
Yamaha Motors
Plug Cap Seal3WG-H2372-00-00
Required: 1
SEAL, PLUG CAP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
9
Required: 1
BATTERY ASSY
Price unavailable
10
Required: 1
WIRE HARNESS ASSY
Price unavailable
11
Required: 1
･FUSE
Price unavailable
29U-81950-93-00
12
Yamaha Motors
29U-81950-93-0027V-81940-02-00
Required: 1
STARTER SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$51.99
$44.19
You save $7.80
More details
13
Required: 3
BAND, SWITCH CORD
Price unavailable
Oil Level Gauge Assembly
14
Yamaha Motors
Oil Level Gauge Assembly53L-85720-10-00
Required: 1
OIL LEVEL GAUGE ASSY
Supersedes: 3VL-H5720-10-00
Cross Ship
Leaves in 2-5 days
$64.99
$55.24
You save $9.75
More details
15
Required: 1
RESISTOR ASSY
Price unavailable
Pan Head Screw
16
Yamaha Motors
Pan Head Screw98580-06010-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98501-06010-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Clamp
17
Yamaha Motors
Clamp90465-18147-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
18
Required: 1
CLAMP
Price unavailable
19
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
20
Required: 1
GASKET, SENDER UNIT
Price unavailable
FUEL METER HOUSING
21
Yamaha Motors
FUEL METER HOUSING53L-24261-00-00
Required: 1
HOUSING, FUEL METER
Cross Ship
Leaves in 2-5 days
$7.99
$6.79
You save $1.20
More details
22
Required: 1
REAR REFLECTOR ASSY
Price unavailable
Flange Nut
23
Yamaha Motors
Flange Nut95707-05500-00
Required: 1
NUT, FLANGE
Supersedes: 95706-05500-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
24
Required: 1
BAND, SWITCH CORD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
