1996 Scooter YA50R - YA50R (4PC5) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

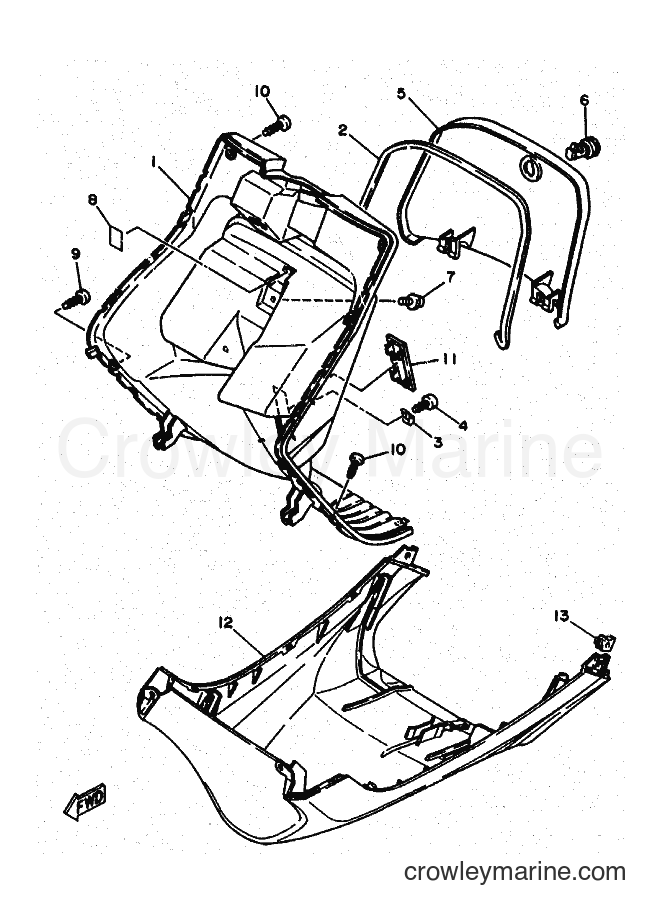

Yamaha Motors YA50R (4PC5) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Required: 1
DAMPER
Price unavailable
Cowl Latch Hinge
3
Yamaha Motors
Cowl Latch Hinge35R-21796-00-00
Required: 2
HINGE
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
Tapping Screw
4
Yamaha Motors
Tapping Screw97707-40512-00
Required: 2
SCREW, TAPPING
Supersedes: 97706-40512-00
Cross Ship
Leaves in 2-5 days
$0.70
$0.60
You save $0.10
More details
5
Required: 1
LID
Price unavailable
6
Required: 1
SIDE COVER LOCK ASSY
Price unavailable
7
Required: 1
SCREW, WITH WASHER
Price unavailable
8
Required: 1
PROTECTOR 1
Price unavailable
97707-50016-00
9
Yamaha Motors
97707-50016-0097706-50016-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$1.10
$0.94
You save $0.17
More details
97707-50016-00
10
Yamaha Motors
97707-50016-0097706-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$1.10
$0.94
You save $0.17
More details
11
Required: 1
CAP
Price unavailable
12
Required: 1
COVER, LOWER
Price unavailable
Nut
13
Yamaha Motors
Nut25G-21535-00-00
Required: 2
NUT 1
Supersedes: 3VP-21535-00-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
