All diagrams for this model

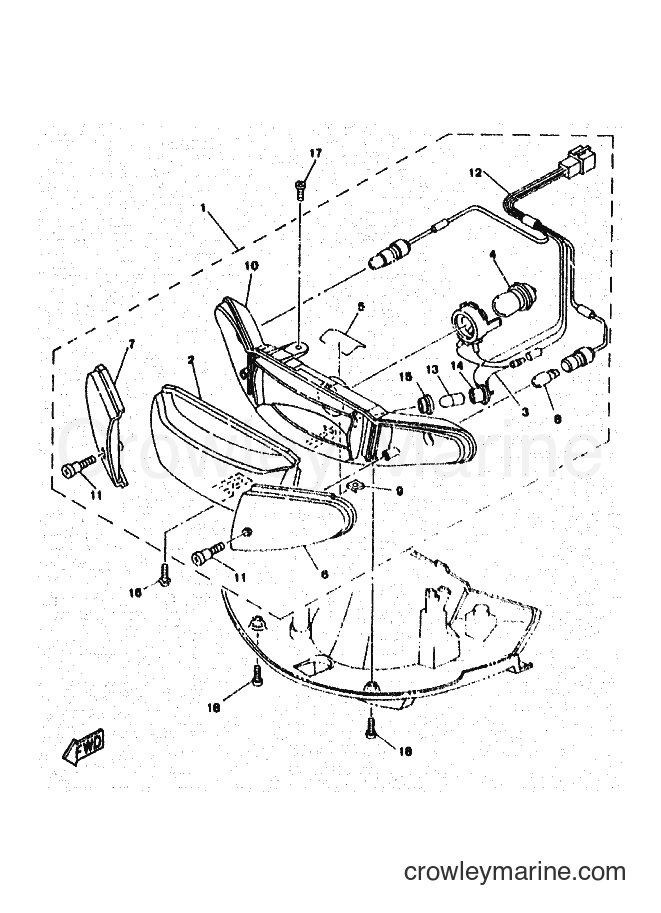

1996 Scooter YA50R - YA50R (4PC5) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YA50R (4PC5) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT ASSY
Price unavailable
2
Required: 1
･LENS, HEADLIGHT
Price unavailable
3
Required: 1
･SOCKET
Price unavailable
4
Required: 1
･BULB, HEADLIGHT
Price unavailable
5
Required: 1
･SPRING, REFLECTOR
Price unavailable
6
Required: 1
･LENS, FLASHER
Price unavailable
6
Required: 1
･LENS, FLASHER
Price unavailable
7
Required: 1
･LENS, FLASHER 2
Price unavailable
7
Required: 1
･LENS, FLASHER 2
Price unavailable
8
Required: 2
･BULB, FLASHER
Price unavailable
9
Required: 1
･NUT
Price unavailable
10
Required: 1
･BODY, HEADLIGHT
Price unavailable
11
Required: 2
･BOLT, SPECIAL
Price unavailable
12
Required: 1
･CORD, HEADLIGHT
Price unavailable
13
Required: 1
･BULB
Price unavailable
14
Required: 1
･SOCKET, PILOT LIGHT
Price unavailable
15
Required: 1
･GROMMET
Price unavailable
WCREW WITH WASHER
16
Yamaha Motors
WCREW WITH WASHER90159-05155-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
18
Required: 2
SCREW, TAPPING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
