1996 Scooter YA50R - YA50R (4PC5) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

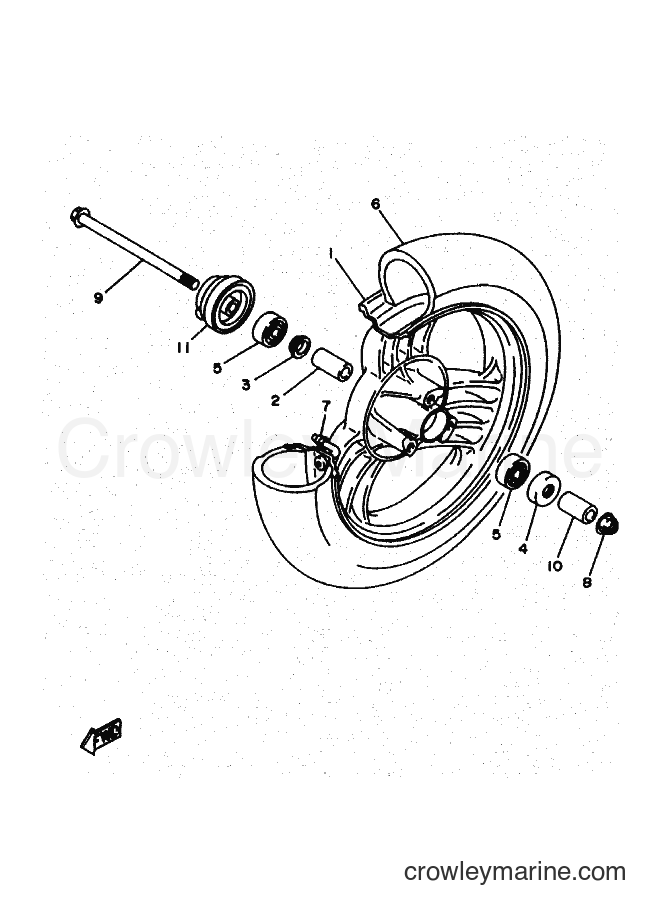

Yamaha Motors YA50R (4PC5) [010] - FRONT WHEEL
Change View:
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
2
Required: 1
SPACER, BEARING
Price unavailable
3
Required: 1
FLANGE, SPACER 1
Price unavailable
DD-Type Oil Seal
4
Yamaha Motors
DD-Type Oil Seal93106-20001-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$2.50
$2.13
You save $0.38
More details
BEARING
5
Yamaha Motors
BEARING93306-30003-00
Required: 2
BEARING (B6300Z)
Cross Ship
Leaves in 2-5 days
$45.99
$39.09
You save $6.90
More details
Air Valve Assembly
6
Yamaha Motors
Air Valve Assembly3VL-F5170-10-00
Required: 1
AIR VALVE ASSY
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
7
Required: 1
TIRE (100/80-10)
Price unavailable
8
Required: 1
NUT, SELF-LOCKING
Price unavailable
9
Required: 1
AXLE, WHEEL
Price unavailable
COLLAR
10
Yamaha Motors
COLLAR90387-10079-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$18.49
$15.72
You save $2.77
More details
11
Required: 1
GEAR UNIT ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
