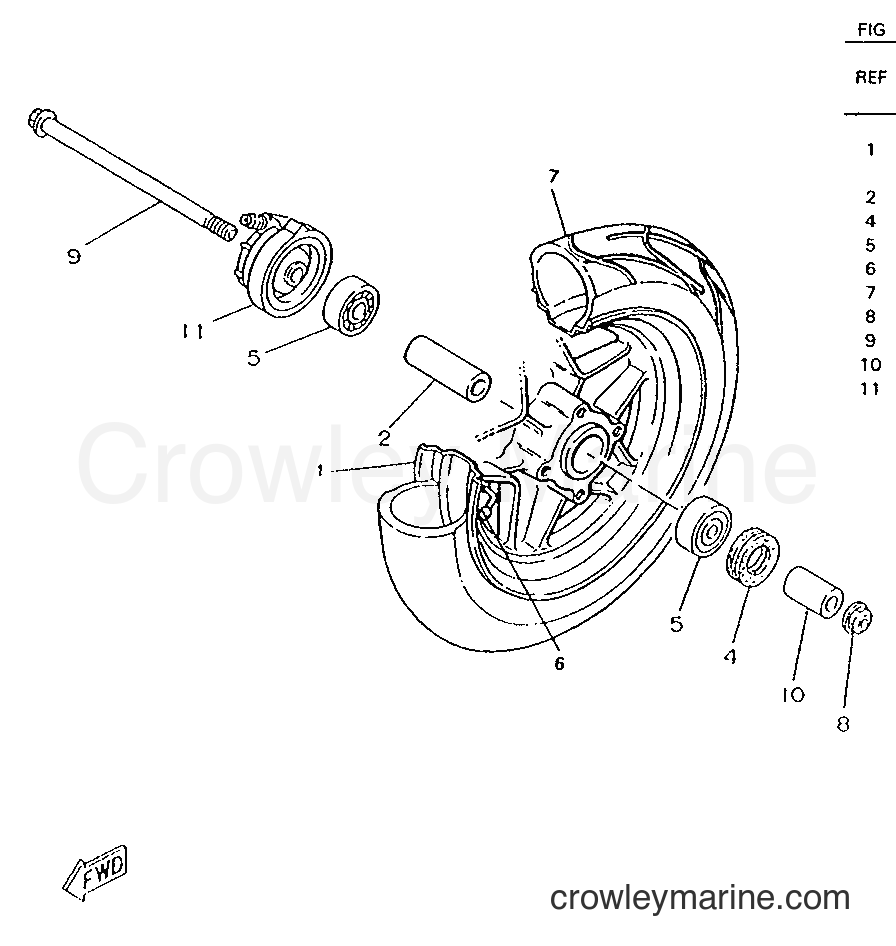

1996 Scooter CW50RS - CW50RS (4VB2) [999] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50RS (4VB2) [999] - FRONT WHEEL
Change View:
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
BEARING SPACER
2
Yamaha Motors
BEARING SPACER4SB-F5117-00-00
Required: 1
SPACER, BEARING
Cross Ship
Leaves in 2-5 days
$12.99
$11.04
You save $1.95
More details
DD-Type Oil Seal
4
Yamaha Motors
DD-Type Oil Seal93106-20001-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$2.50
$2.13
You save $0.38
More details
BEARING
5
Yamaha Motors
BEARING93306-300Y8-00
Required: 2
BEARING
Cross Ship
Leaves in 2-5 days
$42.99
$36.54
You save $6.45
More details
Air Valve Assembly
6
Yamaha Motors
Air Valve Assembly3VL-F5170-10-00
Required: 1
AIR VALVE ASSY
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
7
Required: 1
FRONT TIRE SET
Price unavailable
Pivot Shaft
9
Yamaha Motors
Pivot Shaft486-22141-01-00
Required: 1
SHAFT, PIVOT
Cross Ship
Leaves in 2-5 days
$36.99
$31.44
You save $5.55
More details
COLLAR
10
Yamaha Motors
COLLAR90387-10079-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$18.49
$15.72
You save $2.77
More details
11
Required: 1
GEAR UNIT ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
