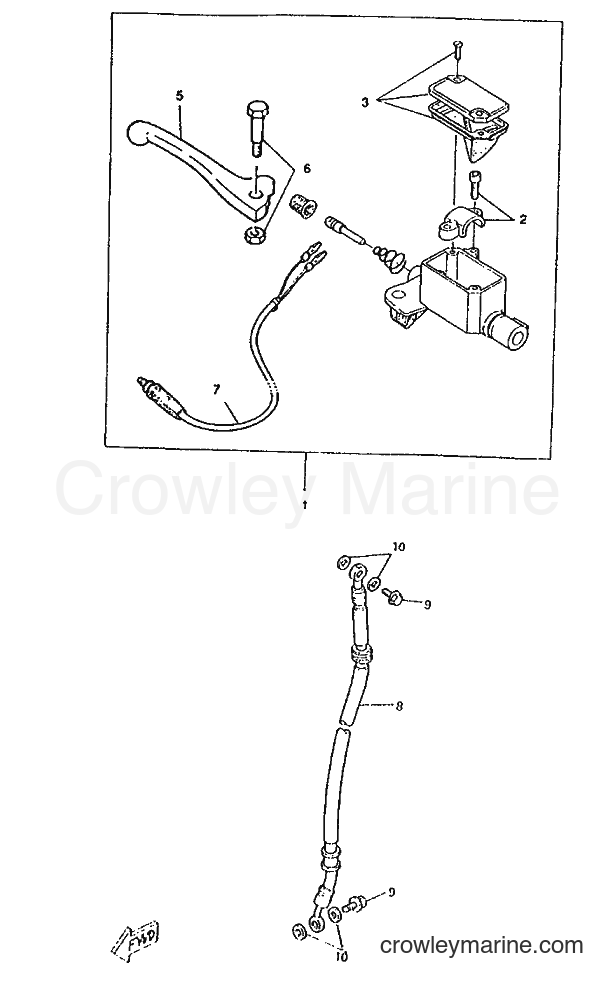

1996 Scooter CW50RS - CW50RS (4VB2) [999] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50RS (4VB2) [999] - FRONT MASTER CYLINDER
Change View:
1
Required: 1
MASTER CYLINDER ASSY
Price unavailable
2
Required: 1
. BRACKET, MASTER CYLINDER
Price unavailable
3
Required: 1
. CAP, RESERVOIR
Price unavailable
5
Required: 1
. LEVER 2
Price unavailable
6
Required: 1
. BOLT, LEVER
Price unavailable
7
Required: 1
. FRONT STOP SWITCH ASSY
Price unavailable
8
Required: 1
HOSE, BRAKE 1
Price unavailable
Union Bolt (3GM)
9
Yamaha Motors
Union Bolt (3GM)90401-10159-00
Required: 2
BOLT, UNION
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Plate Washer
10
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
