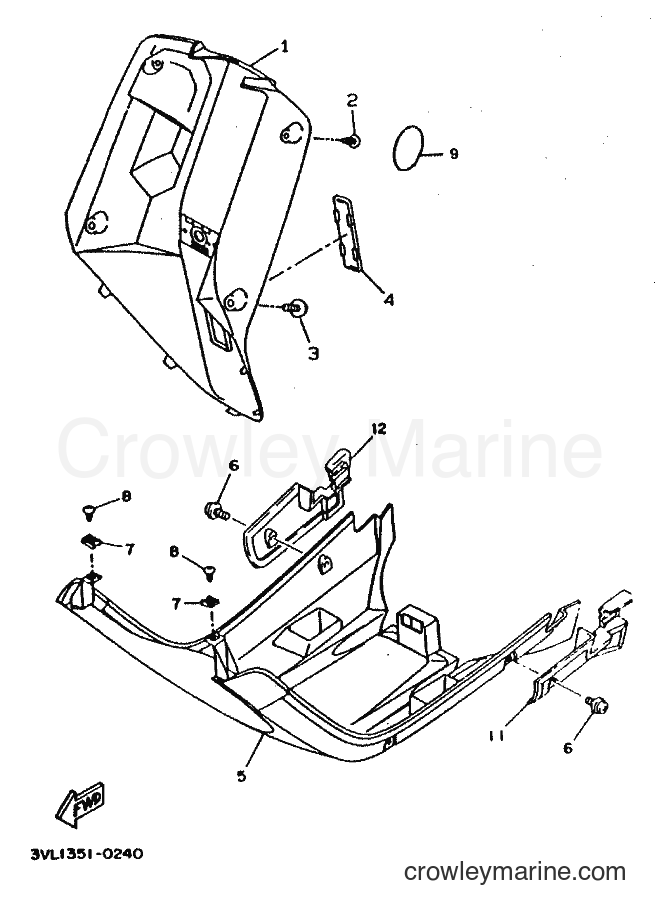

Yamaha Motors CW50 (4RW2) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1 NM4
Price unavailable
Bind Screw
3
Yamaha Motors
Bind Screw90159-06182-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Cap
4
Yamaha Motors
Cap3WV-F8349-10-00
Required: 1
CAP BLACK
Cross Ship
Leaves in 2-5 days
$19.49
$16.57
You save $2.92
More details
5
Required: 1
COVER, LOWER NM4
Price unavailable
Bind Screw
6
Yamaha Motors
Bind Screw90159-06182-00
Required: 4
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Truss Screw
8
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 90167-05025-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
9
Required: 1
EMBLEM NM4
Price unavailable
Cover
11
Yamaha Motors
Cover3MX-27486-20-00
Required: 1
COVER 1
Cross Ship
Leaves in 2-5 days
$39.99
$33.99
You save $6.00
More details
12
Required: 1
LABEL
Price unavailable
12
Required: 1
PLATE, PERMIT
Price unavailable
TIRE LABEL
12
Yamaha Motors
TIRE LABEL3MX-21668-00-00
Required: 1
LABEL, TIRE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
12
Required: 1
LABEL, TIRE
Price unavailable
Cover 2
12
Yamaha Motors
Cover 23MX-27487-20-00
Required: 1
COVER 2
Cross Ship
Leaves in 2-5 days
$39.99
$33.99
You save $6.00
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
