All diagrams for this model

1995 Scooter YE50 - YE50 (4LN4) [999] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

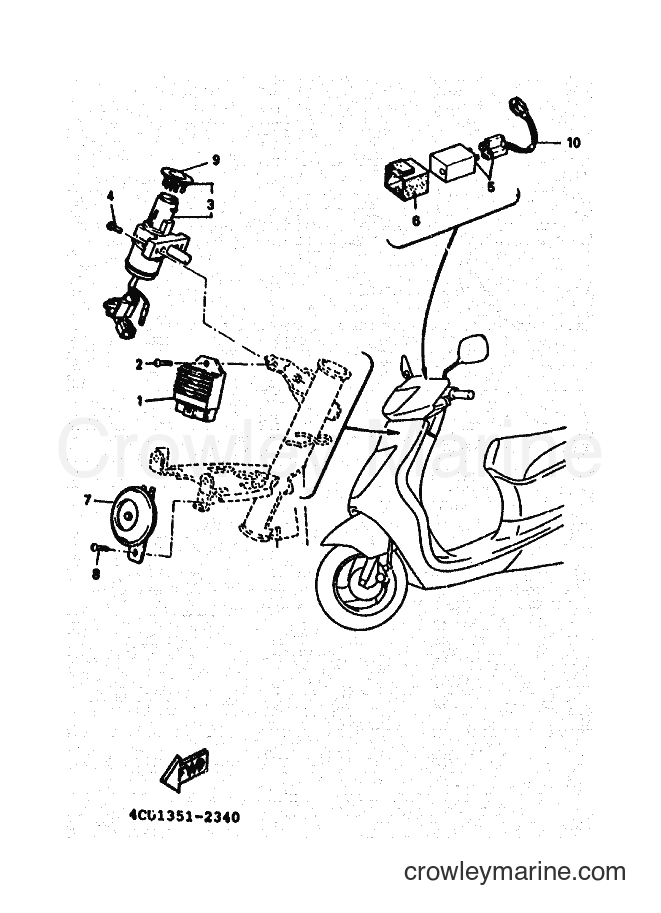

Yamaha Motors YE50 (4LN4) [999] - ELECTRICAL 1
Change View:
RECTIFIER/REGULATOR ASSEMBLY
1
Yamaha Motors
RECTIFIER/REGULATOR ASSEMBLY3KJ-81960-11-00
Required: 1
RECTIFIER & REGULATOR
Cross Ship
Leaves in 2-5 days
$84.99
$72.24
You save $12.75
More details
3
Required: 1
KEY SET
Price unavailable
BOLT
4
Yamaha Motors
BOLT90109-06851-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
Flasher Relay Assembly
5
Yamaha Motors
Flasher Relay Assembly3VL-H3350-00-00
Required: 1
FLASHER RELAY ASSY
Cross Ship
Leaves in 2-5 days
$79.99
$67.99
You save $12.00
More details
Band
6
Yamaha Motors
Band3VL-H5546-00-00
Required: 1
BAND
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
4CU-H3371-03-00
7
Yamaha Motors
4CU-H3371-03-004CU-H3371-01-00
Required: 1
HORN
Supersedes: 4CU-H3371-00-00
Cross Ship
Leaves in 2-5 days
$46.99
$39.94
You save $7.05
More details
9
Required: 1
RING, KEY
Price unavailable
Sub Lead Wire
10
Yamaha Motors
Sub Lead Wire4CA-H2509-00-00
Required: 1
WIRE, SUB LEAD
Cross Ship
Leaves in 2-5 days
$23.99
$20.39
You save $3.60
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
