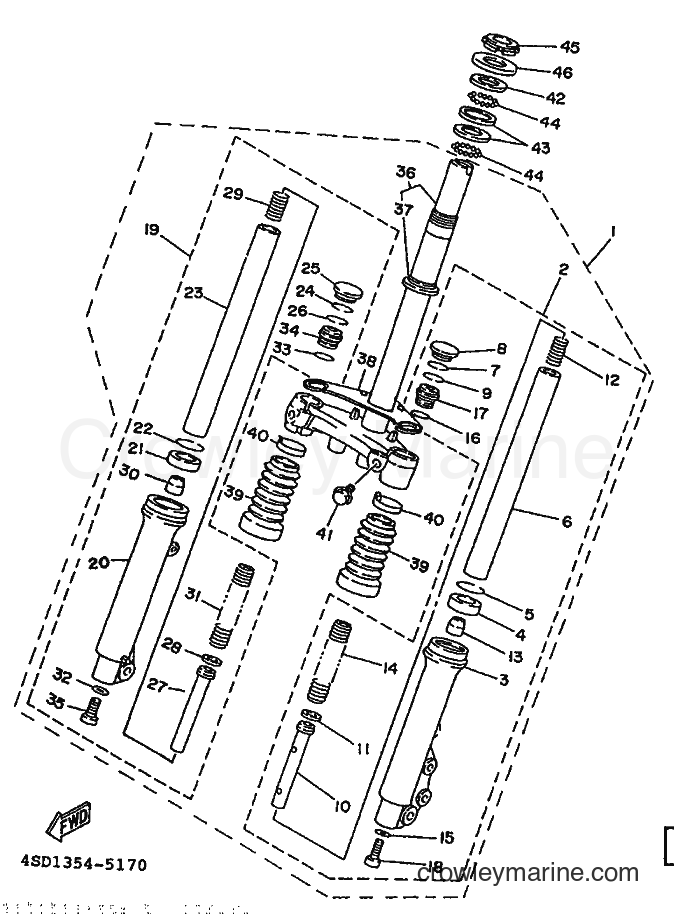

1995 Scooter YA50T - YA50T (4SD1) [999] FRONT FORK diagram
![Yamaha Motors YA50T (4SD1) [999] - FRONT FORK](https://cdn.crowleymarine.com/yamaha/IxrCVayZ.png)
1
Required: 1
FRONT FORK ASSY
Price unavailable
2
Required: 1
. FRONT FORK ASSY (L.H)
Price unavailable
3
Required: 1
. . TUBE, OUTER (LEFT)
Price unavailable
4
Required: 1
. . OIL SEAL
Price unavailable
5
Required: 1
. . CLIP, OIL SEAL
Price unavailable
6
Required: 1
. . INNER TUBE COMP.1
Price unavailable
7
Yamaha Motors
Snap Ring3XG-F3153-00-00
Required: 1
. . RING, SNAP
$0.42
You save $0.08
8
Required: 1
. . PLUG, INNER TUBE
Price unavailable
9
Required: 1
. . CIRCLIP
Price unavailable
10
Required: 1
. . PISTON, FRONT FORK
Price unavailable
11
Required: 1
. . RING, PISTON
Price unavailable
12
Required: 1
. . SPRING, REBOUND
Price unavailable
13
Required: 1
. . SPINDLE, TAPER
Price unavailable
14
Required: 1
. . SPRING, FRONT FORK
Price unavailable
15
Required: 1
. . GASKET
Price unavailable
16
Required: 1
. . O-RING
Price unavailable
17
Required: 1
. . BOLT, CAP
Price unavailable
$1.27
You save $0.23
19
Required: 1
. FRONT FORK ASSY (R.H)
Price unavailable
20
Required: 1
. . TUBE, OUTER (RIGHT)
Price unavailable
21
Required: 1
. . OIL SEAL
Price unavailable
22
Required: 1
. . CLIP, OIL SEAL
Price unavailable
23
Required: 1
. . INNER TUBE COMP.1
Price unavailable
24
Yamaha Motors
Snap Ring3XG-F3153-00-00
Required: 1
. . RING, SNAP
$0.42
You save $0.08
25
Required: 1
. . PLUG, INNER TUBE
Price unavailable
26
Required: 1
. . CIRCLIP
Price unavailable
27
Required: 1
. . PISTON, FRONT FORK
Price unavailable
28
Required: 1
. . RING, PISTON
Price unavailable
29
Required: 1
. . SPRING, REBOUND
Price unavailable
30
Required: 1
. . SPINDLE, TAPER
Price unavailable
31
Required: 1
. . SPRING, FRONT FORK
Price unavailable
32
Required: 1
. . GASKET
Price unavailable
33
Required: 1
. . O-RING
Price unavailable
34
Required: 1
. . BOLT, CAP
Price unavailable
$1.27
You save $0.23
36
Required: 1
. . UNDER BRACKET COMP.
Price unavailable
37
Yamaha Motors
BALL RACEBP2-23414-00-00
Required: 1
. . RACE, BALL 4
Supersedes: 22F-23414-01-00
$16.57
You save $2.92
38
Required: 1
. . DAMPER 1
Price unavailable
39
Required: 2
. . BOOT
Price unavailable
$0.68
You save $0.12
41
Yamaha Motors
95811-10030-0095821-10030-00
Required: 2
. . BOLT, FLANGE
$2.21
You save $0.39
42
Yamaha Motors
BALL RACEBP2-23411-00-00
Required: 1
. . RACE, BALL 1
Supersedes: 22F-23411-01-00
$10.62
You save $1.87
43
Yamaha Motors
Ball RaceBP2-23412-00-00
Required: 2
. . RACE, BALL 2
Supersedes: 22F-23412-01-00
$7.22
You save $1.27
In stock
5+ in stock
$2.46
You save $0.44
45
Yamaha Motors
Nut90179-25004-00
Required: 2
. . NUT
Supersedes: 90179-25033-00
$22.94
You save $4.05
46
Required: 1
. . COVER, BALL RACE 2
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
