1995 Scooter YA50R - YA50R (4PC4) [999] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

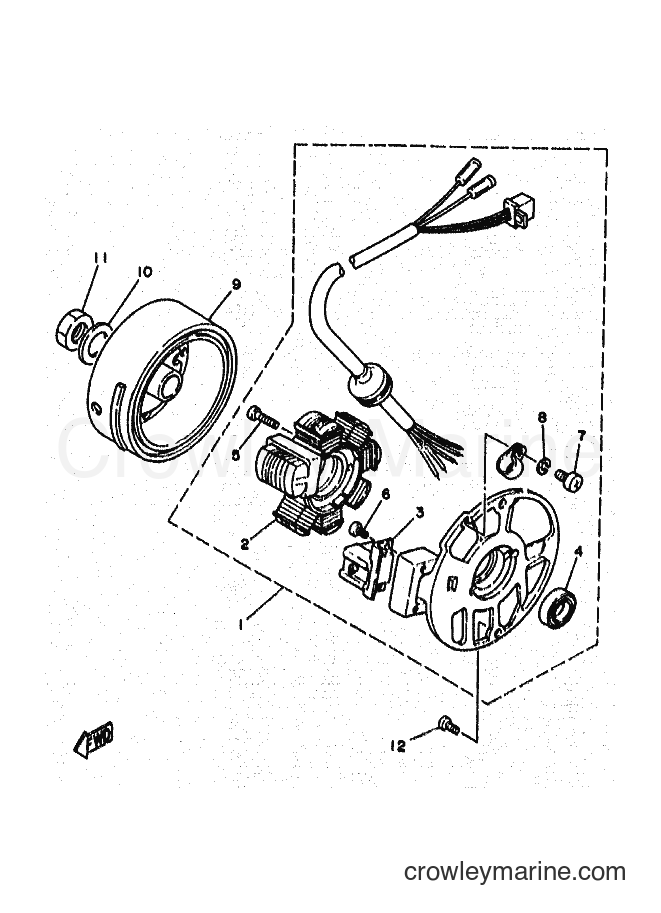

Yamaha Motors YA50R (4PC4) [999] - GENERATOR
Change View:
Base Assembly
1
Yamaha Motors
Base Assembly3KJ-85560-00-00
Required: 1
BASE ASSY
Cross Ship
Leaves in 2-5 days
$225.99
$192.09
You save $33.90
More details
STATOR COMP
2
Yamaha Motors
STATOR COMP2JA-81403-M0-00
Required: 1
･STATOR COMP.
Cross Ship
Leaves in 2-5 days
$137.99
$117.29
You save $20.70
More details
Pulser Coil
3
Yamaha Motors
Pulser Coil2JA-85580-M0-00
Required: 1
･COIL, PULSER
Cross Ship
Leaves in 2-5 days
$74.99
$63.74
You save $11.25
More details
OIL SEAL,SO-TYPE
4
Yamaha Motors
OIL SEAL,SO-TYPE93104-19097-00
Required: 1
･OIL SEAL
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
5
Required: 2
･SCREW, PAN HEAD
Price unavailable
7
Required: 1
･SCREW, PAN HEAD
Price unavailable
Rotor Assembly
9
Yamaha Motors
Rotor Assembly2JA-85550-02-00
Required: 1
ROTOR ASSY
Supersedes: 2JA-85550-00-00
Cross Ship
Leaves in 2-5 days
$186.99
$158.94
You save $28.05
More details
Plate Washer
10
Yamaha Motors
Plate Washer92907-10600-00
Required: 1
WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Nut
11
Yamaha Motors
Nut90170-10011-00
Required: 1
NUT
Supersedes: 90170-10219-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Pan Head Screw
12
Yamaha Motors
Pan Head Screw98507-06016-00
Required: 2
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.48
$2.96
You save $0.52
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
