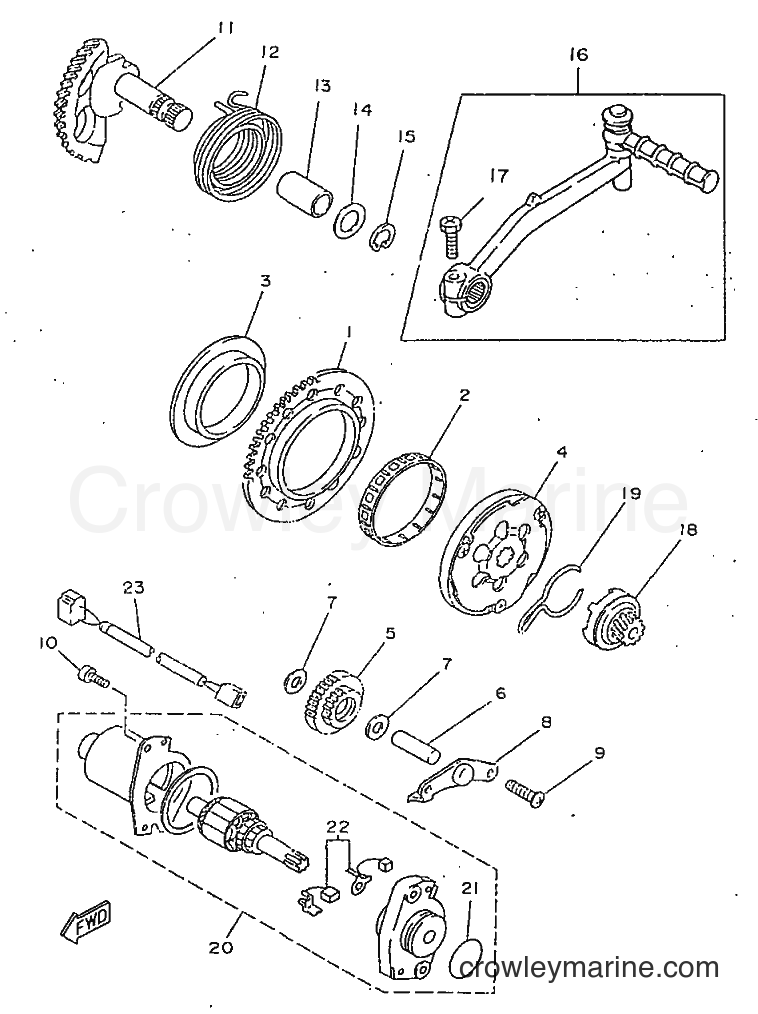

1995 Scooter YA50N - YA50N (3UG2) [999] STARTER diagram

1
Yamaha Motors
Gear3AA-15513-00-00
Required: 1
GEAR 1 (71T)
$77.34
You save $13.65

2
Yamaha Motors
BEARING93310-25712-00
Required: 1
BEARING
Supersedes: 93310-257R1-00
$41.64
You save $7.35
$15.29
You save $2.70

4
Yamaha Motors
STARTER CLUTCH ASSEMBLY3VL-15570-00-00
Required: 1
STARTER CLUTCH ASSY
$61.19
You save $10.80

5
Yamaha Motors
Idle Gear Assembly3AA-15650-00-00
Required: 1
IDLE GEAR ASSY (65T)
$48.44
You save $8.55

6
Yamaha Motors
Shaft3VL-E5659-10-00
Required: 1
SHAFT
Supersedes: 3VL-E5659-00-00
$2.54
You save $0.45

7
Yamaha Motors
Plate Washer90201-08088-00
Required: 2
WASHER, PLATE
$0.98
You save $0.17
8
Required: 1
PLATE, IDLE GEAR
Price unavailable

9
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06012-00
$3.60
You save $0.50

10
Yamaha Motors
Bolt91317-06020-00
Required: 2
BOLT
Supersedes: 91318-06020-00
$4.23
You save $-1.48

11
Yamaha Motors
KICK SHAFT ASSEMBLY3KJ-15601-00-00
Required: 1
KICK SHAFT ASSY
$47.59
You save $8.40

12
Yamaha Motors
Torsion Spring90508-32609-00
Required: 1
SPRING, TORSION
$14.02
You save $2.47
$1.27
You save $0.23

14
Yamaha Motors
Plate Washer90201-154E9-00
Required: 1
WASHER, PLATE
Supersedes: 90201-155G5-00
$8.92
You save $1.57
$8.07
You save $1.42
16
Required: 1
KICK CRANK ASSY
Price unavailable

17
Yamaha Motors
Bolt97017-06025-00
Required: 1
. BOLT
Supersedes: 97316-06025-00
$3.87
You save $0.68
18
Required: 1
KICK PINION ASSY
Price unavailable
19
Required: 1
CLIP
Price unavailable

20
Yamaha Motors
5BM-81800-01-003KJ-81800-02-00
Required: 1
STARTING MOTOR ASSY
Supersedes: 3KJ-81800-01-00
$140.24
You save $24.75
$7.22
You save $1.27
$29.74
You save $5.25
23
Required: 1
WIRE, LEAD
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
