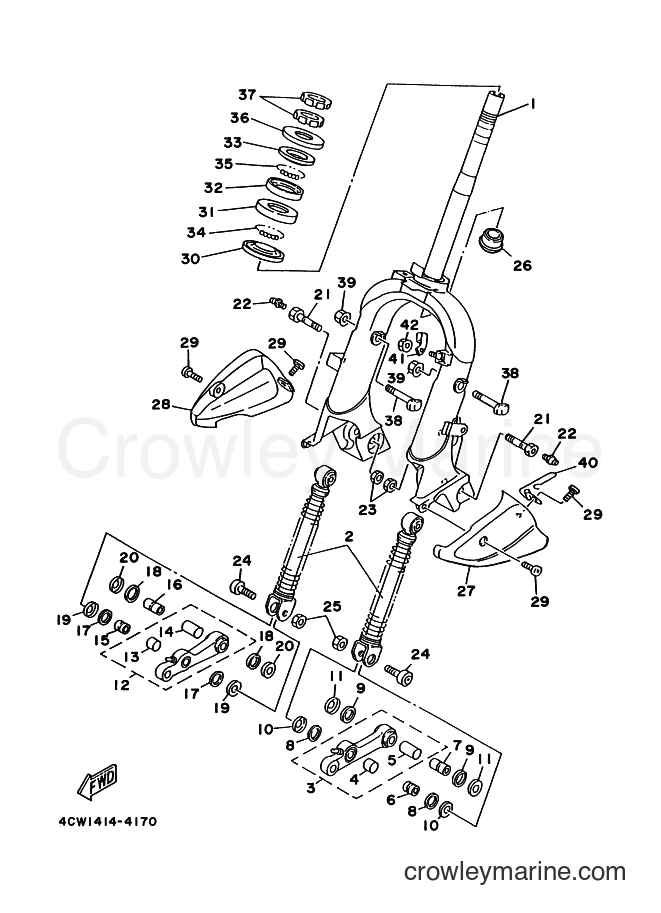

1995 Scooter XC125T - XC125T (4KY4) [999] FRONT FORK diagram
![Yamaha Motors XC125T (4KY4) [999] - FRONT FORK](https://cdn.crowleymarine.com/yamaha/ggJLL52i.png)
1
Required: 1
FORK COVER COMP.
Price unavailable
2
Required: 2
SHOCK ABSORBER ASSY
Price unavailable
3
Required: 1
ARM 1
Price unavailable
4
Required: 1
. BUSH
Price unavailable
5
Required: 1
. BUSH
Price unavailable
6
Required: 1
COLLAR 1
Price unavailable
7
Required: 1
COLLAR 2
Price unavailable
8
Required: 2
SEAL, DUST 1
Price unavailable
9
Required: 2
SEAL, DUST 2
Price unavailable
10
Required: 2
COVER, DUST SEAL 1
Price unavailable
11
Required: 2
COVER, DUST SEAL 2
Price unavailable
12
Required: 1
ARM 2
Price unavailable
13
Required: 1
. BUSH
Price unavailable
14
Required: 1
. BUSH
Price unavailable
15
Required: 1
COLLAR 1
Price unavailable
16
Required: 1
COLLAR 2
Price unavailable
17
Required: 2
SEAL, DUST 1
Price unavailable
18
Required: 2
SEAL, DUST 2
Price unavailable
19
Required: 2
COVER, DUST SEAL 1
Price unavailable
20
Required: 2
COVER, DUST SEAL 2
Price unavailable
21
Required: 2
BOLT, UNION
Price unavailable
22
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 2
NIPPLE, GREASE
Supersedes: 93700-06802-00
In stock
5+ in stock
$7.01
You save $1.24
23
Yamaha Motors
SELF-LOCKING NUT9560L-10200-00
Required: 2
NUT, SELF-LOCKING
$0.85
You save $0.15
24
Required: 2
SCREW, FLAT FILLISTER
Price unavailable
25
Required: 2
NUT
Price unavailable
$14.02
You save $2.47
27
Required: 1
CAP, SIDE 1
Price unavailable
28
Required: 1
CAP, SIDE 2
Price unavailable
$8.07
You save $1.42
30
Yamaha Motors
BALL RACEB6E-23411-00-00
Required: 1
RACE, BALL 1
Supersedes: 156-23411-00-00
$8.07
You save $1.42
31
Yamaha Motors
Ball RaceB6E-23412-00-00
Required: 1
RACE, BALL 2
Supersedes: 156-23412-00-00
$12.32
You save $2.17
32
Yamaha Motors
Ball RaceBP2-23412-00-00
Required: 1
RACE, BALL 2
Supersedes: 22F-23412-01-00
$7.22
You save $1.27
33
Yamaha Motors
BALL RACEBP2-23411-00-00
Required: 1
RACE, BALL 1
Supersedes: 22F-23411-01-00
$10.62
You save $1.87
In stock
Only 1 remaining
$8.07
You save $1.42
35
Yamaha Motors
Ball93503-16003-00
Required: 22
BALL
Supersedes: 93503-16010-00
In stock
5+ in stock
$2.46
You save $0.44
36
Required: 1
COVER, BALL RACE 2
Price unavailable
37
Yamaha Motors
Nut90179-25004-00
Required: 2
NUT
Supersedes: 90179-25033-00
$22.94
You save $4.05
38
Required: 2
BOLT
Price unavailable
39
Required: 2
NUT, SELF-LOCKING
Price unavailable
40
Required: 1
WIRE, HOLDER 2
Price unavailable
41
Required: 1
HOLDER, CABLE
Price unavailable
42
Yamaha Motors
Flange Nut95780-06500-00
Required: 1
NUT, FLANGE
Supersedes: 9570L-06500-00
In stock
Only 2 remaining
$2.51
You save $0.44
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
