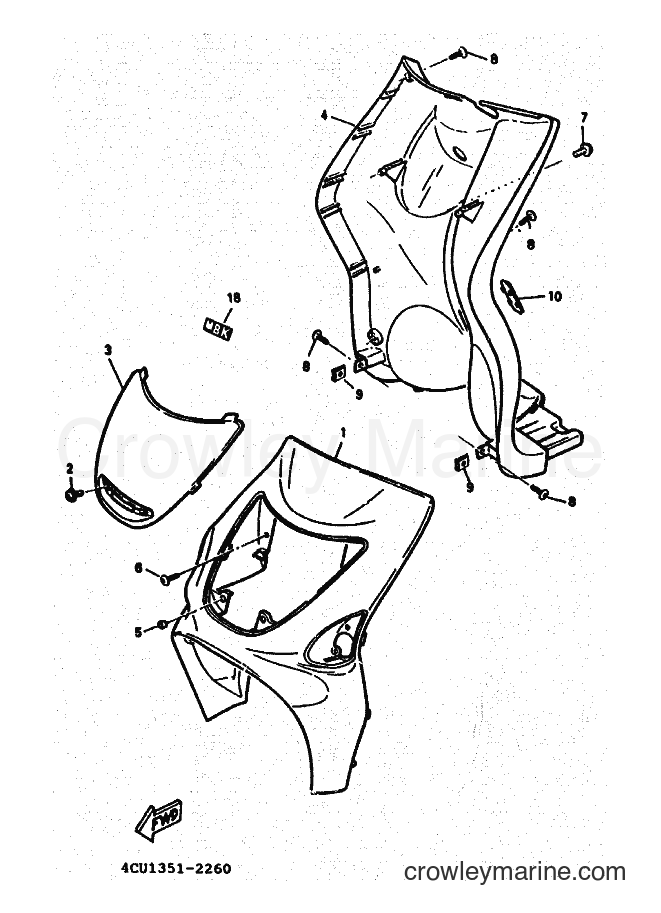

1994 Scooter YE50 - YE50 (4LN2) [999] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YE50 (4LN2) [999] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
Screw with Washer
2
Yamaha Motors
Screw with Washer90159-06067-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
3
Required: 1
LID
Price unavailable
4
Required: 1
LEG SHIELD 2
Price unavailable
COLLAR
5
Yamaha Motors
COLLAR90387-08057-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
97707-50016-00
6
Yamaha Motors
97707-50016-0097706-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$1.10
$0.94
You save $0.17
More details
Bind Screw
7
Yamaha Motors
Bind Screw90159-06182-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
97707-50016-00
8
Yamaha Motors
97707-50016-0097706-50016-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$1.10
$0.94
You save $0.17
More details
Cap
10
Yamaha Motors
Cap14T-28349-40-00
Required: 1
CAP
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
18
Required: 1
EMBLEM MBK
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
