1994 Scooter YE50 - YE50 (4LN2) [010] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

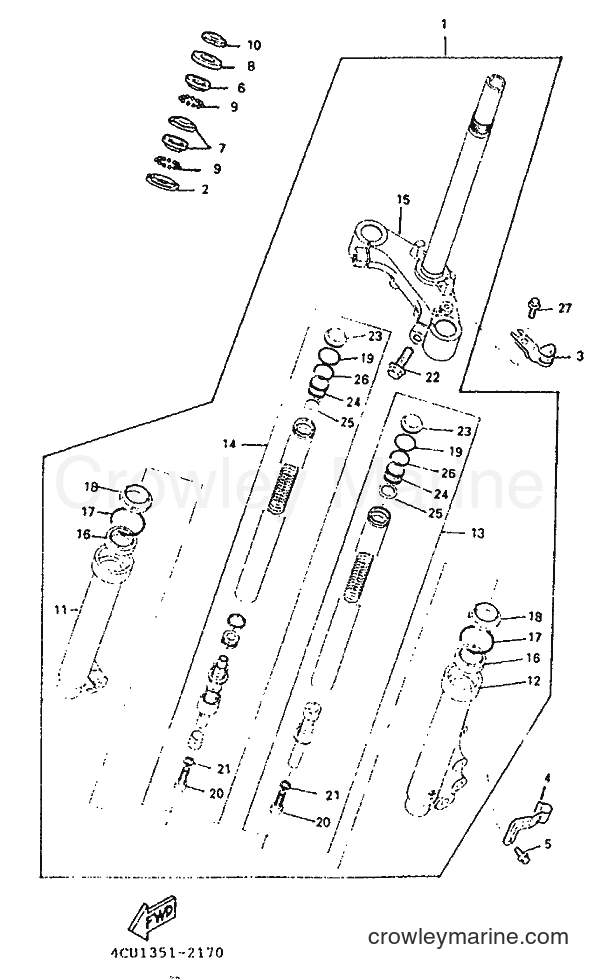

Yamaha Motors YE50 (4LN2) [010] - FRONT FORK
Change View:
1
Required: 2
DAMPER 1
Price unavailable
BALL RACE
2
Yamaha Motors
BALL RACEBP2-23414-00-00
Required: 1
RACE, BALL 4
Supersedes: 22F-23414-01-00
Cross Ship
Leaves in 2-5 days
$19.49
$16.57
You save $2.92
More details
3
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
4
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
BALL RACE
6
Yamaha Motors
BALL RACEBP2-23411-00-00
Required: 1
RACE, BALL 1
Supersedes: 22F-23411-01-00
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Ball Race
7
Yamaha Motors
Ball RaceBP2-23412-00-00
Required: 2
RACE, BALL 2
Supersedes: 22F-23412-01-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
8
Required: 1
COVER, BALL RACE 2
Price unavailable
Nut
10
Yamaha Motors
Nut90179-25004-00
Required: 1
NUT, POP
Supersedes: 90179-25033-00
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
11
Required: 1
TUBE, OUTER 2
Price unavailable
12
Required: 1
TUBE, OUTER 1
Price unavailable
13
Required: 1
INNER TUBE COMP. 1
Price unavailable
14
Required: 1
INNER TUBE COMP. 2
Price unavailable
15
Required: 1
UNDER BRACKET COMP.
Price unavailable
16
Required: 2
OIL SEAL
Price unavailable
17
Required: 2
CLIP, OIL SEAL
Price unavailable
18
Required: 2
SEAL, DUST
Price unavailable
19
Required: 2
RING, SNAP
Price unavailable
20
Required: 2
BOLT, HEXAGON SOCKET
Price unavailable
21
Required: 2
WASHER, FELT
Price unavailable
22
Required: 2
WASHER, SPECIAL
Price unavailable
23
Required: 2
PLUG, INNER TUBE
Price unavailable
24
Required: 2
BOLT, CAP
Price unavailable
25
Required: 2
O-RING
Price unavailable
26
Required: 2
CIRCLIP
Price unavailable
27
Required: 1
FRONT FORK ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
