All diagrams for this model

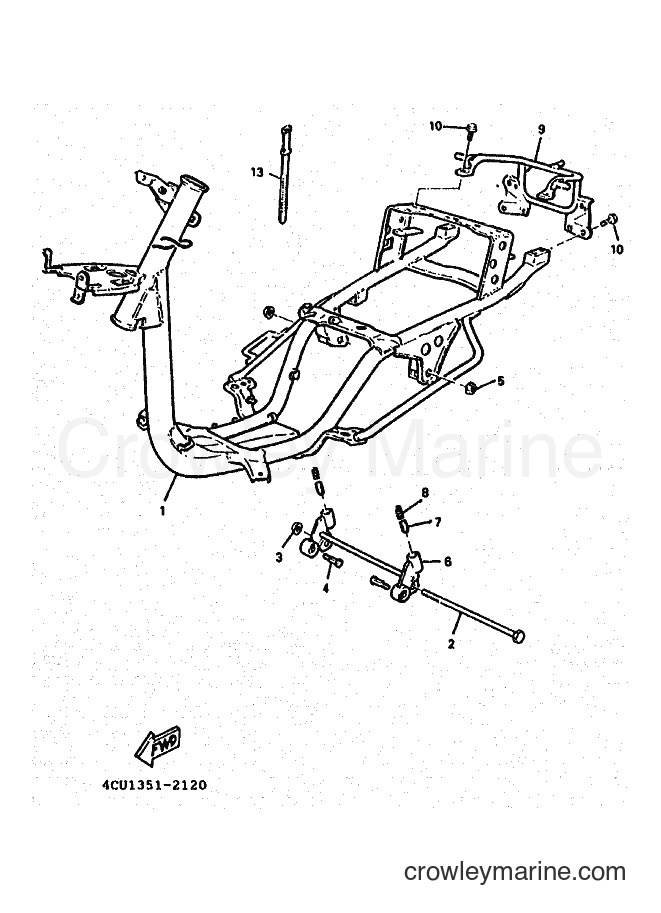

1994 Scooter YE50 - YE50 (4LN2) [999] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YE50 (4LN2) [999] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
Engine Mounting Bolt
2
Yamaha Motors
Engine Mounting Bolt3KJ-21481-00-00
Required: 1
BOLT, ENGINE MOUNTING 1
Cross Ship
Leaves in 2-5 days
$17.49
$14.87
You save $2.62
More details
FLANGE NUT
3
Yamaha Motors
FLANGE NUT95607-12200-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 95601-12200-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Engine Mounting Bolt
4
Yamaha Motors
Engine Mounting Bolt2T4-21481-01-00
Required: 2
BOLT, ENGINE MOUNTING
Cross Ship
Leaves in 2-5 days
$3.60
$3.15
You save $0.45
More details
Self-Locking Nut
5
Yamaha Motors
Self-Locking Nut90185-10154-00
Required: 2
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
6
Required: 1
ENGINE BRACKET COMP.
Price unavailable
DAMPER 2
7
Yamaha Motors
DAMPER 22T4-2139X-00-00
Required: 2
DAMPER
Cross Ship
Leaves in 2-5 days
$10.99
$9.34
You save $1.65
More details
Compression Spring
8
Yamaha Motors
Compression Spring90501-290K2-00
Required: 2
SPRING, COMPRESSION
Supersedes: 90501-29517-00
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
9
Required: 1
REINFORCEMENT, TAIL
Price unavailable
95814-08016-00
10
Yamaha Motors
95814-08016-0095821-08016-00
Required: 4
BOLT, FLANGE
Supersedes: 95822-08016-00
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details
13
Required: 1
MANUFACTURER PLATE
Price unavailable
13
Required: 2
RIVET, BLIND
Price unavailable
13
Required: 1
CLAMP
Price unavailable
13
Required: 2
WASHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
