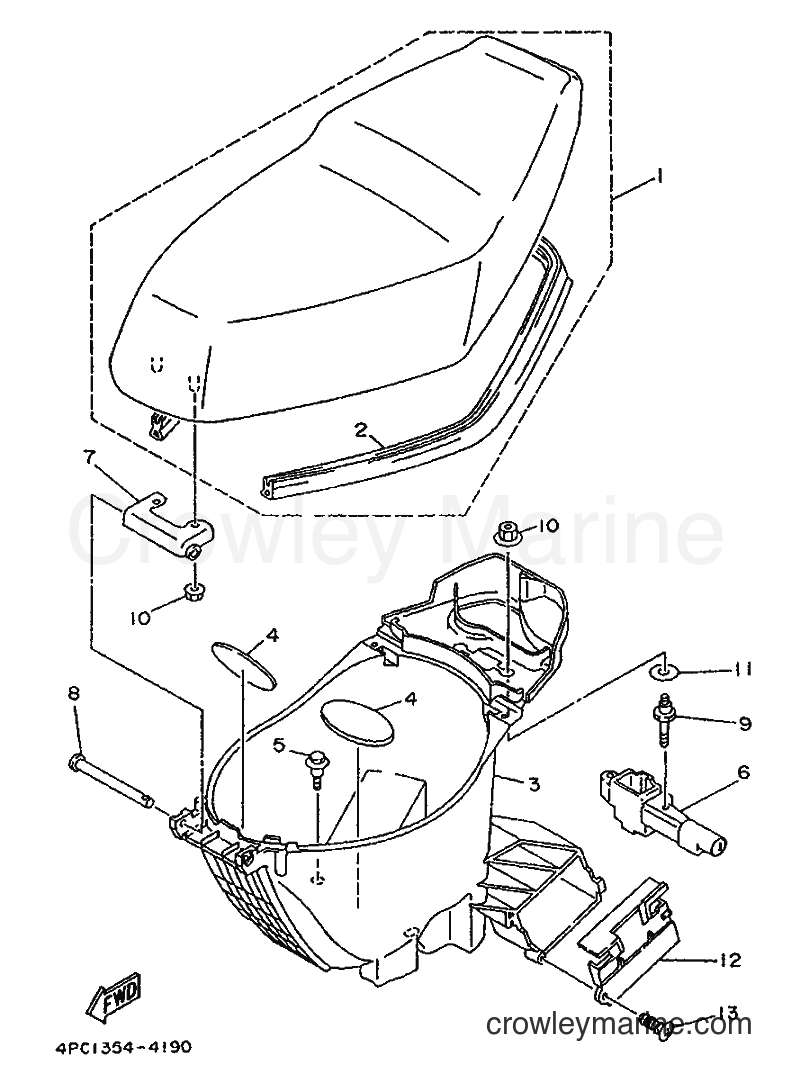

1994 Scooter YA50R - YA50R (4PC2) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YA50R (4PC2) [010] - SEAT
Change View:
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 1
SEAL
Price unavailable
3
Required: 1
BOX 1
Price unavailable
4
Required: 3
DAMPER, SEAT
Price unavailable
5
Required: 2
BOLT
Price unavailable
6
Required: 1
SEAT LOCK ASSY
Price unavailable
7
Required: 1
HINGE, SEAT
Price unavailable
PIN
8
Yamaha Motors
PIN90241-10015-00
Required: 1
PIN
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
9
Required: 2
BOLT, SEAT FITTING
Price unavailable
SPECIAL SHAPE NUT
10
Yamaha Motors
SPECIAL SHAPE NUT90179-06403-00
Required: 4
NUT
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details
Plate Washer
11
Yamaha Motors
Plate Washer90201-086A3-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
12
Required: 1
COVER, BATTERY
Price unavailable
Truss Screw
13
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TAPPING
Supersedes: 90167-05041-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
