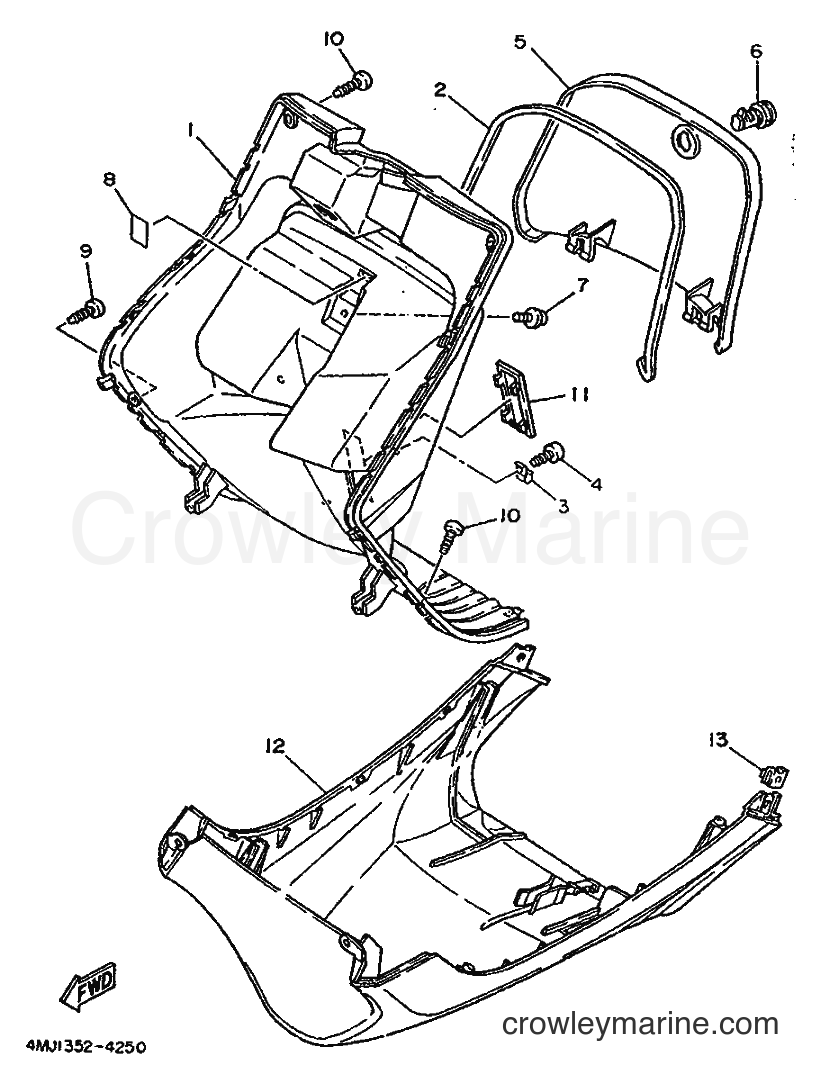

1994 Scooter YA50R - YA50R (4PC2) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

9

to see part

9

Ships Now

9

Ships Later

9

Out of Stock

Yamaha Motors YA50R (4PC2) [010] - LEG SHIELD

Change View:

1

Required: 1

LEG SHIELD 1

Price unavailable

2

Required: 1

DAMPER

Price unavailable

Cowl Latch Hinge

Cowl Latch Hinge35R-21796-00-00

HINGE

~~$5.99~~

$5.09

You save $0.90

Truss Screw

Truss Screw97707-40612-00

SCREW, TAPPING

Supersedes: 97707-40512-00

~~$6.99~~

$5.94

You save $1.05

5

Required: 1

LID

Price unavailable

6

Required: 1

LOCK ASSY

Price unavailable

7

Required: 1

SCREW, WITH WASHER

Price unavailable

8

Required: 1

PROTECTOR 1

Price unavailable

Truss Head Tapping Screw

Truss Head Tapping Screw97707-50016-00

SCREW, TAPPING

In stock

Only 4 remaining

~~$1.85~~

$1.57

You save $0.28

Truss Head Tapping Screw

Truss Head Tapping Screw97707-50016-00

SCREW, TAPPING

In stock

Only 4 remaining

~~$1.85~~

$1.57

You save $0.28

11

Required: 1

CAP

Price unavailable

12

Required: 1

COVER, LOWER

Price unavailable

12

Required: 1

COVER, LOWER

Price unavailable

Nut

Nut25G-21535-00-00

NUT 1

Supersedes: 3VP-21535-00-00

~~$9.49~~

$8.07

You save $1.42

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
