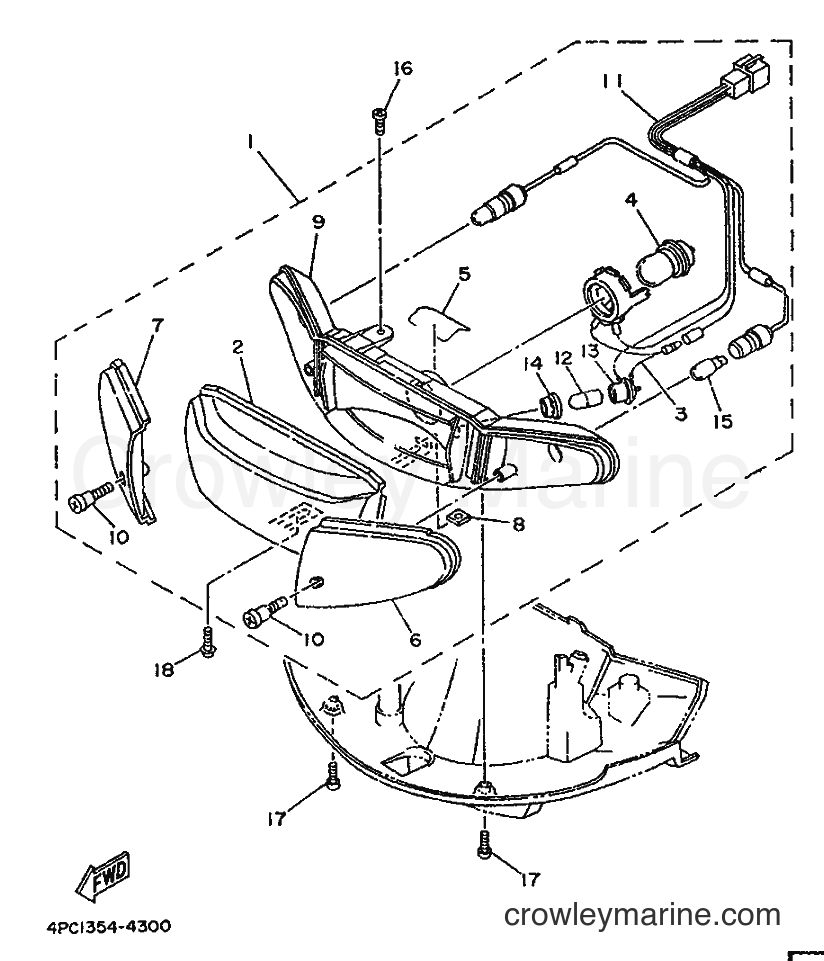

1994 Scooter YA50R - YA50R (4PC2) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YA50R (4PC2) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT ASSY
Price unavailable
2
Required: 1
. LENS ASSY
Price unavailable
3
Required: 1
. HOLDER,SOCKET
Price unavailable
4
Required: 1
. BULB, HEADLIGHT
Price unavailable
5
Required: 1
. SPRING, REFLECTOR
Price unavailable
6
Required: 1
. LENS, FLASHER
Price unavailable
7
Required: 1
. LENS, FLASHER 2
Price unavailable
8
Required: 1
. NUT
Price unavailable
9
Required: 1
. BODY, HEADLIGHT
Price unavailable
10
Required: 2
. BOLT, SPECIAL
Price unavailable
11
Required: 1
. CORD, HEADLIGHT
Price unavailable
12
Required: 1
. BULB
Price unavailable
13
Required: 1
. SOCKET, PILOT LIGHT
Price unavailable
14
Required: 1
. GROMMET
Price unavailable
BULB (12V-10W)
15
Yamaha Motors
BULB (12V-10W)1YT-83311-00-00
Required: 2
. BULB, FLASHER
Cross Ship
Leaves in 2-5 days
$4.80
$4.08
You save $0.72
More details
Tapping Screw
17
Yamaha Motors
Tapping Screw97707-50025-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
18
Required: 1
SCREW, WITH WASHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
