All diagrams for this model

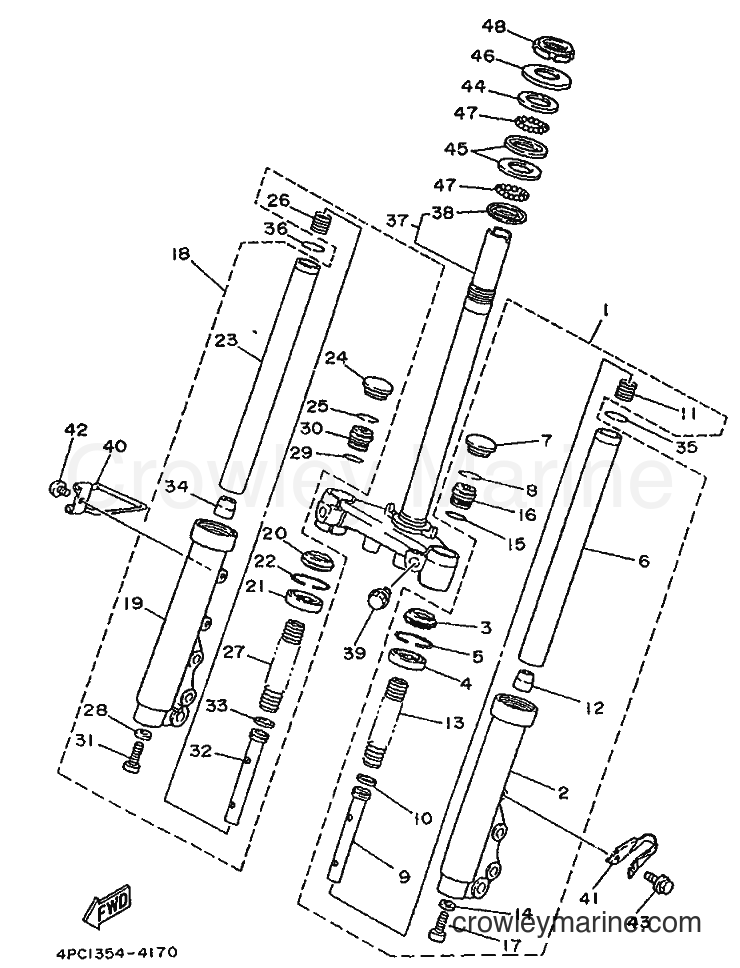

1994 Scooter YA50R - YA50R (4PC2) [010] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YA50R (4PC2) [010] - FRONT FORK
Change View:
1
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
2
Required: 1
. TUBE, OUTER (LEFT)
Price unavailable
3
Required: 1
. SEAL, DUST
Price unavailable
4
Required: 1
. OIL SEAL
Price unavailable
5
Required: 1
. CLIP, OIL SEAL
Price unavailable
6
Required: 1
. INNER TUBE COMP.1
Price unavailable
7
Required: 1
. PLUG, INNER TUBE
Price unavailable
8
Required: 1
. CIRCLIP
Price unavailable
9
Required: 1
. PISTON, FRONT FORK
Price unavailable
10
Required: 1
. RING, PISTON
Price unavailable
11
Required: 1
. SPRING, REBOUND
Price unavailable
12
Required: 1
. SPINDLE, TAPER
Price unavailable
13
Required: 1
. SPRING, FRONT FORK
Price unavailable
14
Required: 1
. WASHER, FELT
Price unavailable
15
Required: 1
. O-RING
Price unavailable
16
Required: 1
. BOLT, CAP
Price unavailable
17
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
18
Required: 1
. FRONT FORK ASSY (R.H)
Price unavailable
19
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
20
Required: 1
. SEAL, DUST
Price unavailable
21
Required: 1
. OIL SEAL
Price unavailable
22
Required: 1
. CLIP, OIL SEAL
Price unavailable
23
Required: 1
. INNER TUBE COMP.1
Price unavailable
24
Required: 1
. PLUG, INNER TUBE
Price unavailable
25
Required: 1
. CIRCLIP
Price unavailable
26
Required: 1
. SPRING, REBOUND
Price unavailable
27
Required: 1
. SPRING, FRONT FORK
Price unavailable
28
Required: 1
. WASHER, FELT
Price unavailable
29
Required: 1
. O-RING
Price unavailable
30
Required: 1
. BOLT, CAP
Price unavailable
31
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
32
Required: 1
. PISTON, FRONT FORK
Price unavailable
33
Required: 1
. RING, PISTON
Price unavailable
34
Required: 1
. SPINDLE, TAPER
Price unavailable
35
Required: 1
RING, SNAP
Price unavailable
36
Required: 1
RING, SNAP
Price unavailable
37
Required: 1
UNDER BRACKET COMP.
Price unavailable
BALL RACE
38
Yamaha Motors
BALL RACEBP2-23414-00-00
Required: 1
. RACE, BALL 4
Supersedes: 22F-23414-01-00
Cross Ship
Leaves in 2-5 days
$19.49
$16.57
You save $2.92
More details
Flange Bolt
39
Yamaha Motors
Flange Bolt95817-10030-00
Required: 2
BOLT, FLANGE
Supersedes: 95827-10030-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
40
Required: 1
HOLDER, CABLE
Price unavailable
41
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
Bind Screw
42
Yamaha Motors
Bind Screw98907-06010-00
Required: 1
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$1.80
$1.53
You save $0.27
More details
Flange Bolt
43
Yamaha Motors
Flange Bolt95807-06016-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details
BALL RACE
44
Yamaha Motors
BALL RACEBP2-23411-00-00
Required: 1
RACE, BALL 1
Supersedes: 22F-23411-01-00
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Ball Race
45
Yamaha Motors
Ball RaceBP2-23412-00-00
Required: 2
RACE, BALL 2
Supersedes: 22F-23412-01-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
46
Required: 1
COVER, BALL RACE 2
Price unavailable
Nut
48
Yamaha Motors
Nut90179-25004-00
Required: 2
NUT
Supersedes: 90179-25033-00
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
