All diagrams for this model

1994 Scooter YA50R - YA50R (4PC2) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

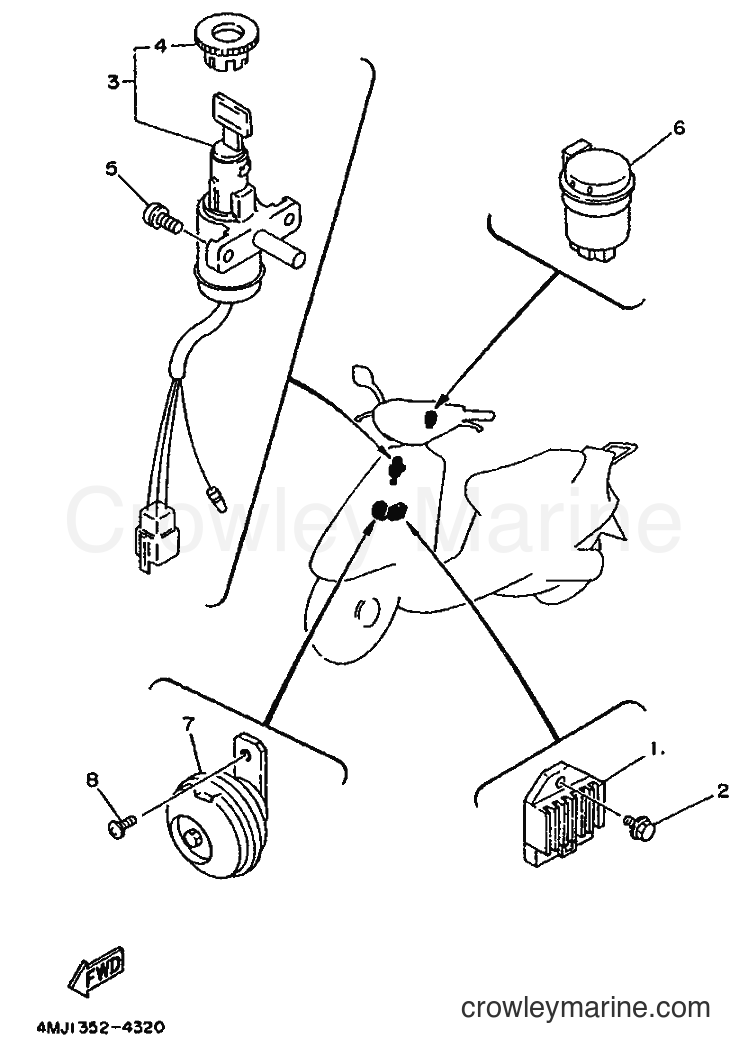

Yamaha Motors YA50R (4PC2) [010] - ELECTRICAL 1
Change View:
RECTIFIER/REGULATOR ASSEMBLY
1
Yamaha Motors
RECTIFIER/REGULATOR ASSEMBLY3KJ-81960-11-00
Required: 1
RECTIFIER & REGULATOR ASSY
Cross Ship
Leaves in 2-5 days
$84.99
$72.24
You save $12.75
More details
Washer Based Bolt
2
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 1
BOLT, FLANGE
Supersedes: 95027-06016-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
3
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
4
Required: 1
. CAP, SWITCH
Price unavailable
SPECIAL SHAPE SCREW
5
Yamaha Motors
SPECIAL SHAPE SCREW90149-06250-00
Required: 2
SCREW
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
6
Required: 1
FLASHER RELAY ASSY
Price unavailable
7
Required: 1
HORN
Price unavailable
Pan Head Screw
8
Yamaha Motors
Pan Head Screw98507-06010-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
