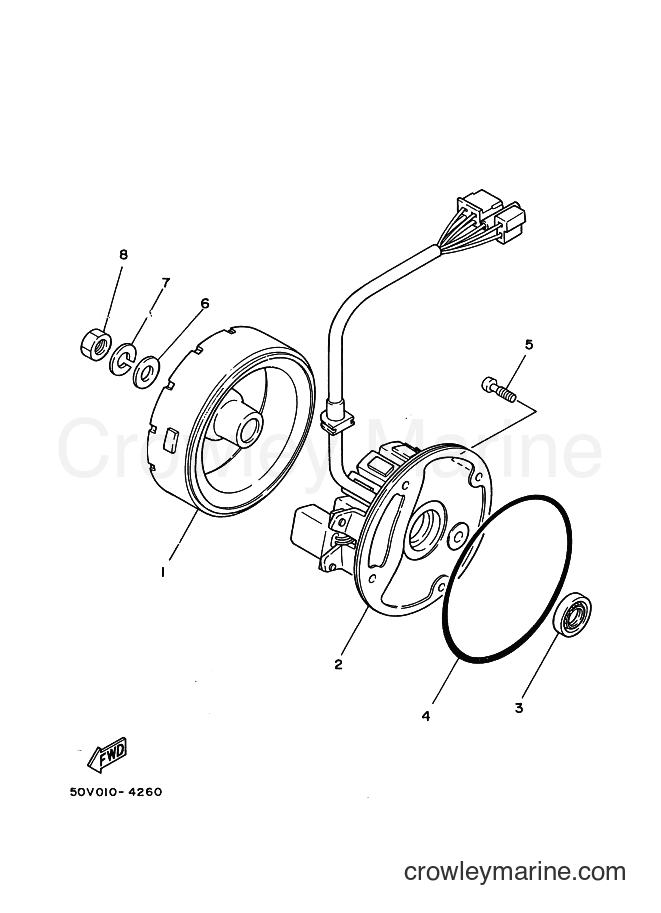

1992 Scooter XC125 - XC125 (3TE2) [999] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC125 (3TE2) [999] - GENERATOR
Change View:
1
Required: 1
ROTOR ASSY
Price unavailable
STATOR ASSEMBLY
2
Yamaha Motors
STATOR ASSEMBLY50M-81410-10-00
Required: 1
STATOR ASSY
Cross Ship
Leaves in 2-5 days
$276.99
$235.44
You save $41.55
More details
SD-TYPE OIL SEAL
3
Yamaha Motors
SD-TYPE OIL SEAL93102-19276-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
O-Ring
4
Yamaha Motors
O-Ring93211-077A5-00
Required: 1
O-RING
Supersedes: 93211-08563-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Plate Washer
6
Yamaha Motors
Plate Washer92990-12600-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$7.59
You save $1.90
More details
Spring Washer
7
Yamaha Motors
Spring Washer92990-12100-00
Required: 1
WASHER, SPRING
Supersedes: 92901-12100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Hexagon Nut
8
Yamaha Motors
Hexagon Nut90170-12181-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
