All diagrams for this model

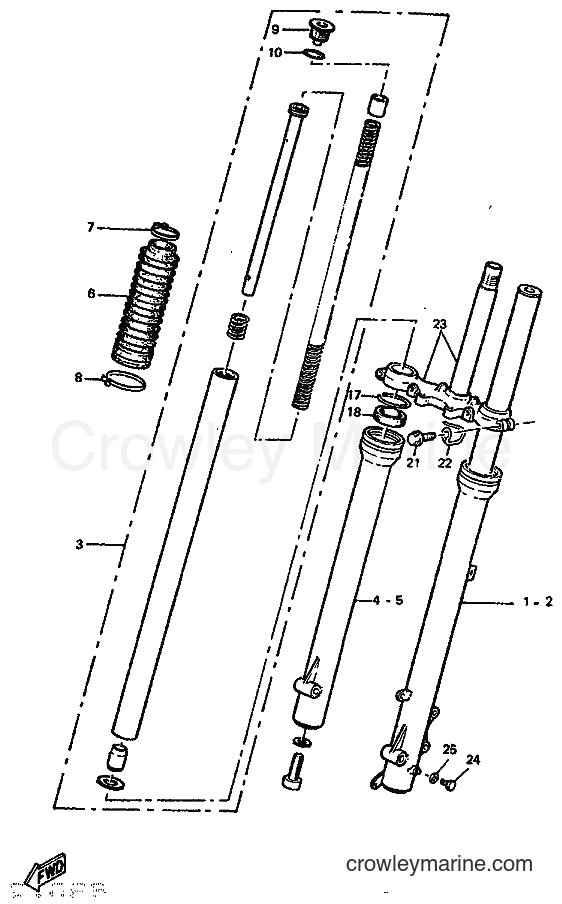

1992 Scooter DT50R - DT50R (4AD2) [999] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors DT50R (4AD2) [999] - FRONT FORK
Change View:
1
Required: 1
ARM ASSY 1
Price unavailable
2
Required: 1
ARM ASSY 2
Price unavailable
3
Required: 2
INNER TUBE COMP.1
Price unavailable
4
Required: 1
TUBE, OUTER (LEFT)
Price unavailable
5
Required: 1
TUBE, OUTER (RIGHT)
Price unavailable
6
Required: 2
BOOT
Price unavailable
6
Required: 2
BOOT
Price unavailable
7
Required: 2
BAND
Price unavailable
8
Required: 2
BAND
Price unavailable
9
Required: 1
BOLT, CAP
Price unavailable
10
Required: 2
GASKET
Price unavailable
17
Required: 2
CLIP, OIL SEAL
Price unavailable
18
Required: 2
OIL SEAL
Price unavailable
21
Required: 1
BOLT, FITTING 1
Price unavailable
22
Required: 1
HOLDER, CABLE
Price unavailable
23
Required: 1
UNDER BRACKET COMP.
Price unavailable
24
Required: 2
PLUG, DRAIN
Price unavailable
25
Required: 2
GASKET, DRAIN PLUG
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
