1992 Scooter CW50 - CW50 (4CA3) [999] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

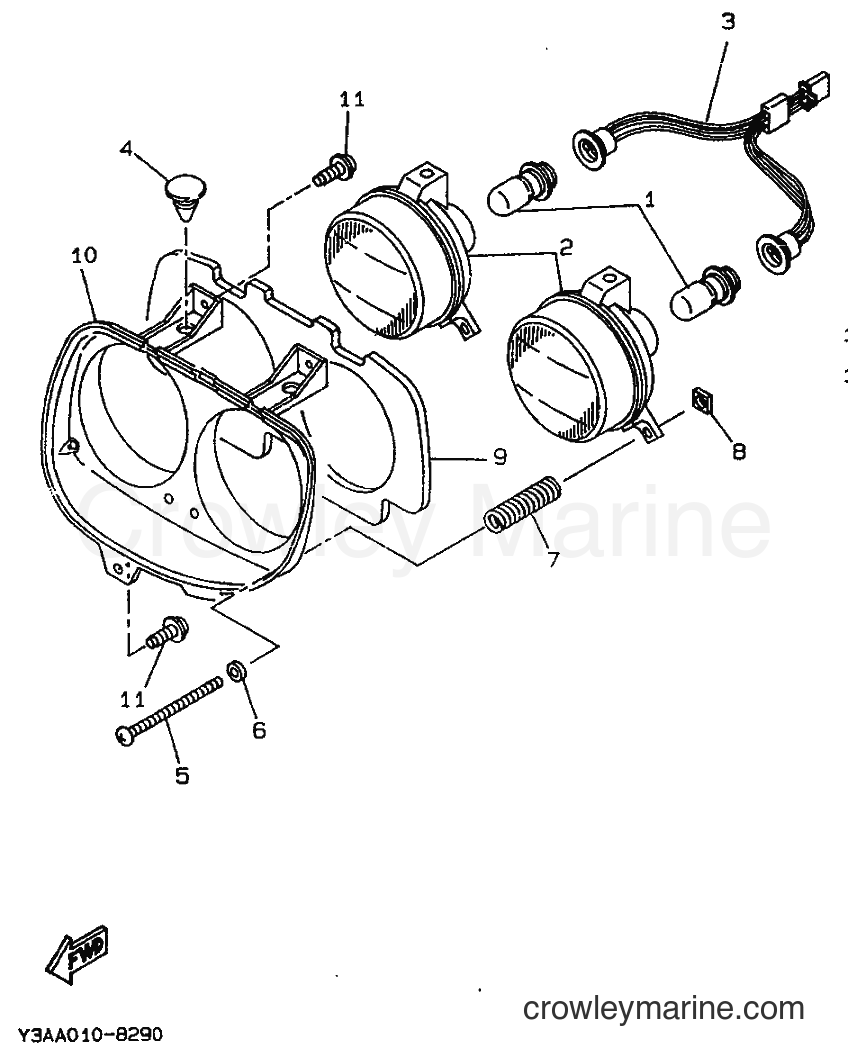

Yamaha Motors CW50 (4CA3) [999] - HEADLIGHT
Change View:
1
Required: 2
BULB, HEADLIGHT
Price unavailable
2
Required: 2
HEADLIGHT UNIT ASSY
Price unavailable
3
Required: 1
SOCKET CORD ASSY 1
Price unavailable
4
Required: 2
NUT, BODY FITTING
Price unavailable
RIM ADJUSTMENT SCREW
5
Yamaha Motors
RIM ADJUSTMENT SCREW3AA-84331-00-00
Required: 4
SCREW, RIM ADJUSTING
Cross Ship
Leaves in 2-5 days
$3.40
$2.89
You save $0.51
More details
Special Washer
6
Yamaha Motors
Special Washer3AA-84327-00-00
Required: 4
WASHER, SPECIAL
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
Screw Spring
7
Yamaha Motors
Screw Spring3AA-84332-00-00
Required: 4
SPRING, SCREW
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
8
Required: 4
NUT, ADJUSTING
Price unavailable
HEADLIGHT COVER
9
Yamaha Motors
HEADLIGHT COVER3AA-84144-00-00
Required: 1
COVER, HEADLIGHT
Cross Ship
Leaves in 2-5 days
$9.99
$8.49
You save $1.50
More details
10
Required: 1
COVER, SOCKET
Price unavailable
Screw with Washer
11
Yamaha Motors
Screw with Washer90159-05089-00
Required: 3
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
