All diagrams for this model

1992 Scooter CW50 - CW50 (4BY2) [999] ELECTRICAL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

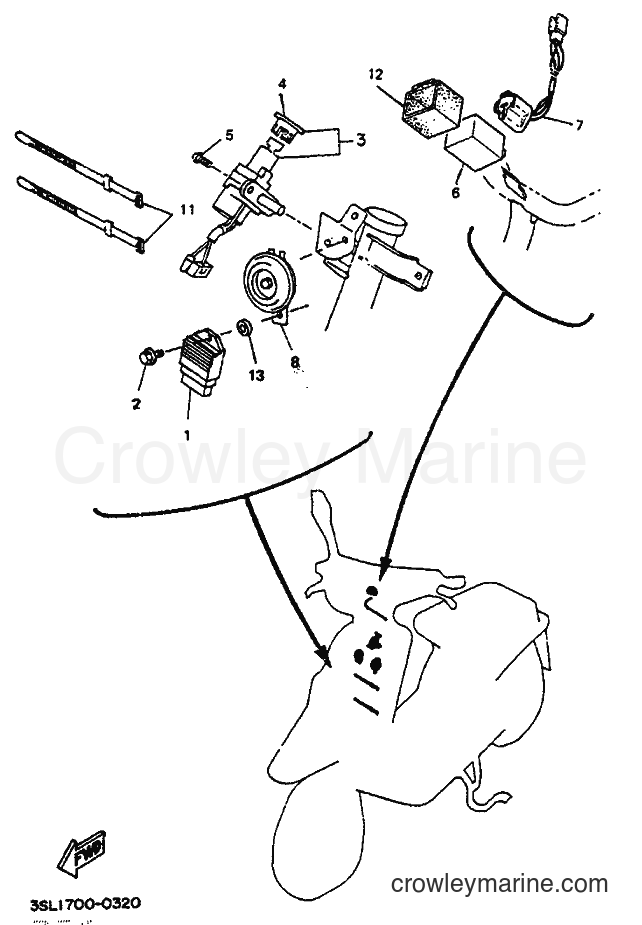

Yamaha Motors CW50 (4BY2) [999] - ELECTRICAL
Change View:
RECTIFIER/REGULATOR ASSEMBLY
1
Yamaha Motors
RECTIFIER/REGULATOR ASSEMBLY3KJ-81960-11-00
Required: 1
RECTIFIER & REGULATOR ASSY
Supersedes: 3AA-81960-00-00
Cross Ship
Leaves in 2-5 days
$84.99
$72.24
You save $12.75
More details
2
Required: 1
BOLT
Price unavailable
3
Required: 1
KEY SET
Price unavailable
Switch Cap
4
Yamaha Motors
Switch Cap2EX-82552-20-00
Required: 1
CAP, SWITCH
Cross Ship
Leaves in 2-5 days
$10.99
$9.34
You save $1.65
More details
5
Required: 2
SCREW
Price unavailable
Flasher Relay Assembly
6
Yamaha Motors
Flasher Relay Assembly3VL-H3350-00-00
Required: 1
FLASHER RELAY ASSY
Cross Ship
Leaves in 2-5 days
$79.99
$67.99
You save $12.00
More details
Sub Lead Wire
7
Yamaha Motors
Sub Lead Wire4CA-H2509-00-00
Required: 1
WIRE, SUB LEAD
Cross Ship
Leaves in 2-5 days
$23.99
$20.39
You save $3.60
More details
8
Required: 1
HORN
Price unavailable
11
Required: 3
BAND, SWITCH CORD
Price unavailable
Band
12
Yamaha Motors
Band3VL-H5546-00-00
Required: 1
BAND
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
13
Required: 1
COLLAR
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
