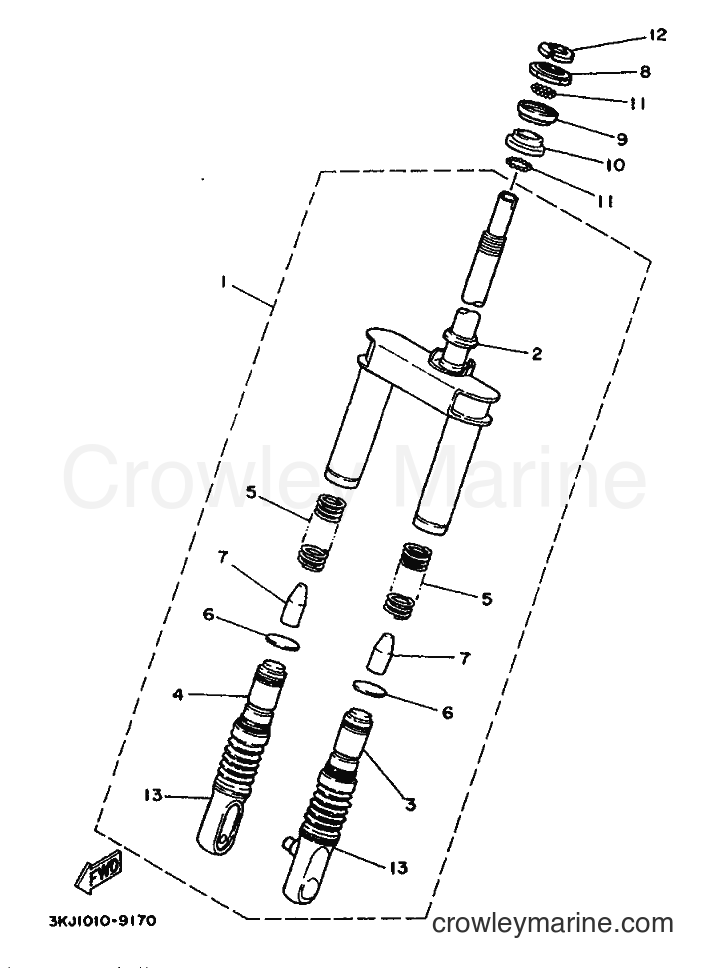

1990 Scooter CY50 - CY50 (3WG1) [999] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CY50 (3WG1) [999] - FRONT FORK
Change View:
1
Required: 1
FRONT FORK ASSY
Price unavailable
1
Required: 1
FRONT FORK ASSY
Price unavailable
2
Required: 1
RACE, BALL 4
Price unavailable
3
Required: 1
. INNER TUBE COMP.1
Price unavailable
3
Required: 1
. INNER TUBE COMP.1
Price unavailable
4
Required: 1
. INNER TUBE COMP.2
Price unavailable
4
Required: 1
. INNER TUBE COMP.2
Price unavailable
5
Required: 2
. SPRING, FRONT FORK
Price unavailable
6
Required: 2
. SEAT, SPRING LOWER
Price unavailable
7
Required: 2
. RUBBER
Price unavailable
8
Required: 1
RACE, BALL 1
Price unavailable
9
Required: 1
RACE, BALL 2
Price unavailable
10
Required: 1
PIPE 3
Price unavailable
12
Required: 1
NUT, FITTING 2
Price unavailable
13
Required: 2
BOOT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
