All diagrams for this model

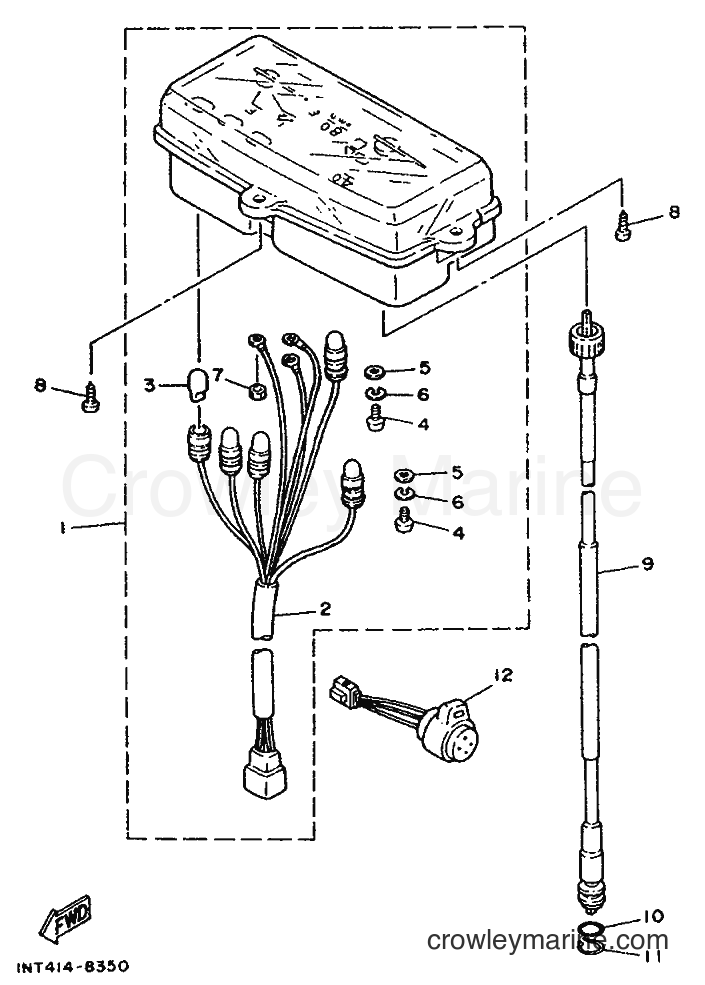

1990 Scooter CT50S - CT50S (3NT7) [999] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CT50S (3NT7) [999] - METER
Change View:
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
2
Required: 1
. SOCKET CORD ASSY
Price unavailable
3
Required: 5
. BULB
Price unavailable
Pan Head Screw
4
Yamaha Motors
Pan Head Screw98580-03010-00
Required: 3
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Washer (3SX)
5
Yamaha Motors
Washer (3SX)92907-03600-00
Required: 3
. WASHER, PLATE
Supersedes: 92902-03600-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Spring Washer
6
Yamaha Motors
Spring Washer92990-03100-00
Required: 3
. WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
NUT, HEXAGON SMALL
7
Yamaha Motors
NUT, HEXAGON SMALL95304-03700-00
Required: 3
. NUT
Supersedes: 95301-03700-00
Cross Ship
Leaves in 2-5 days
$0.45
$0.38
You save $0.07
More details
97707-50016-00
8
Yamaha Motors
97707-50016-0097706-50016-00
Required: 3
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$1.10
$0.94
You save $0.17
More details
9
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable
O-Ring
10
Yamaha Motors
O-Ring93210-14579-00
Required: 1
O-RING
Supersedes: 93210-14805-00
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Stop Ring
11
Yamaha Motors
Stop Ring4X6-F5137-00-00
Required: 1
RING, STOP
Cross Ship
Leaves in 2-5 days
$0.35
$0.30
You save $0.05
More details
12
Required: 1
AUDIO PILOT ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
