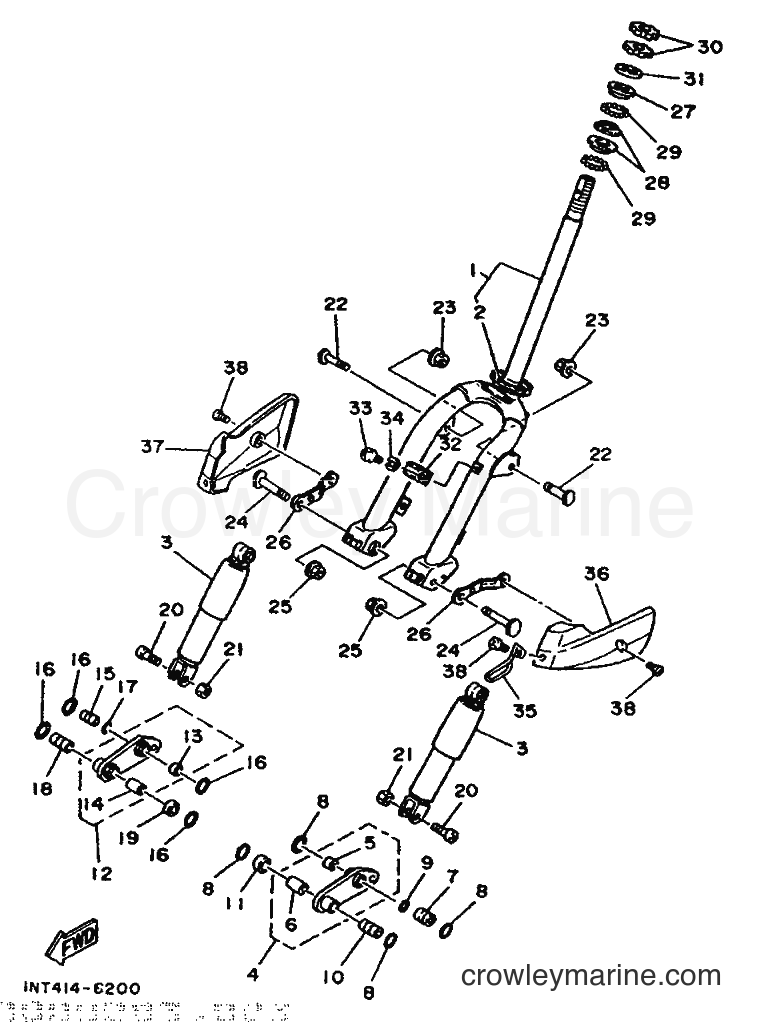

1990 Scooter CT50S - CT50S (3NT7) [999] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CT50S (3NT7) [999] - FRONT FORK
Change View:
1
Required: 1
FRONT FORK ARM COMP.
Price unavailable
BALL RACE
2
Yamaha Motors
BALL RACEBP2-23414-00-00
Required: 1
. RACE, BALL 4
Supersedes: 22F-23414-01-00
Cross Ship
Leaves in 2-5 days
$19.49
$16.57
You save $2.92
More details
3
Required: 2
SHOCK ABSORBER ASSY
Price unavailable
4
Required: 1
ARM 1
Price unavailable
5
Required: 1
. BUSH
Price unavailable
6
Required: 1
. BUSH 2
Price unavailable
7
Required: 1
COLLAR 1
Price unavailable
8
Required: 4
O-RING
Price unavailable
9
Required: 1
O-RING
Price unavailable
10
Required: 1
COLLAR 1
Price unavailable
11
Required: 1
COLLAR, DISTANCE
Price unavailable
12
Required: 1
ARM 2
Price unavailable
13
Required: 1
. BUSH
Price unavailable
14
Required: 1
. BUSH 2
Price unavailable
15
Required: 1
COLLAR 1
Price unavailable
16
Required: 4
O-RING
Price unavailable
17
Required: 1
O-RING
Price unavailable
18
Required: 1
COLLAR 2
Price unavailable
19
Required: 1
COLLAR, DISTANCE
Price unavailable
20
Required: 2
SCREW, FLAT FILLISTER
Price unavailable
22
Required: 2
BOLT
Price unavailable
BOLT
24
Yamaha Motors
BOLT90101-08428-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
26
Required: 2
STAY
Price unavailable
BALL RACE
27
Yamaha Motors
BALL RACEBP2-23411-00-00
Required: 1
RACE, BALL 1
Supersedes: 22F-23411-01-00
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Ball Race
28
Yamaha Motors
Ball RaceBP2-23412-00-00
Required: 2
RACE, BALL 2
Supersedes: 22F-23412-01-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Nut
30
Yamaha Motors
Nut90179-25004-00
Required: 2
NUT
Supersedes: 90179-25033-00
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
31
Required: 1
COVER, BALL RACE 2
Price unavailable
32
Required: 1
HOLDER, CABLE
Price unavailable
Pan Head Screw
33
Yamaha Motors
Pan Head Screw98511-06012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98501-06012-00
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
35
Required: 1
GUIDE, CABLE
Price unavailable
36
Required: 1
CAP, SIDE 1
Price unavailable
36
Required: 1
CAP, SIDE 1
Price unavailable
37
Required: 1
CAP, SIDE 2
Price unavailable
37
Required: 1
CAP, SIDE 2
Price unavailable
98904-06012-00
38
Yamaha Motors
98904-06012-0098903-06012-00
Required: 4
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
