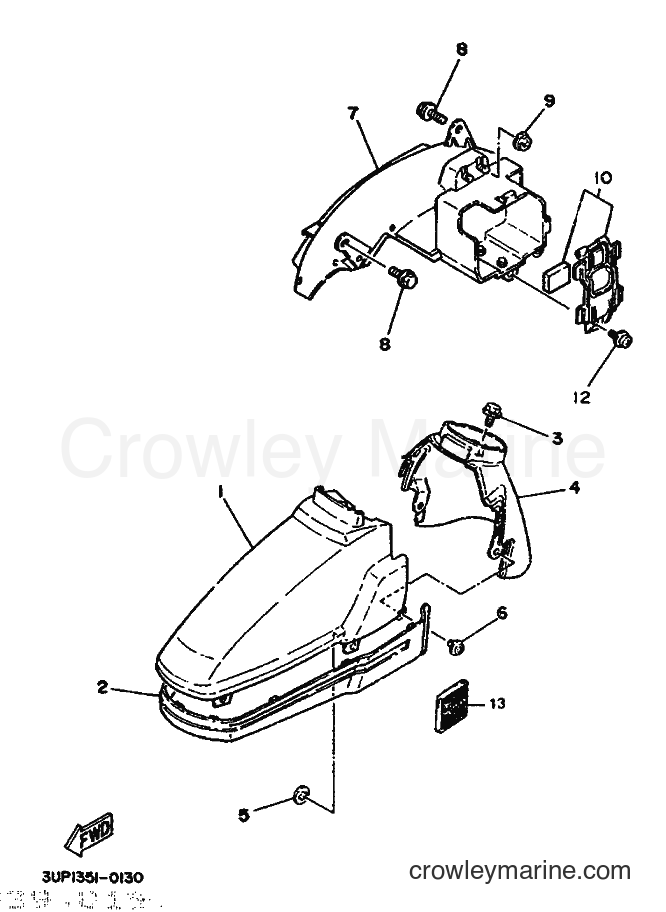

1990 Scooter CH80 - CH80 (3WU1) [999] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CH80 (3WU1) [999] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 1
MOLE, FENDER
Price unavailable
Bolt With Washer
3
Yamaha Motors
Bolt With Washer90119-06123-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06085-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
4
Required: 1
FENDER, FRONT 2
Price unavailable
4
Required: 1
FENDER, FRONT 2
Price unavailable
Spring Nut
5
Yamaha Motors
Spring Nut90183-04005-00
Required: 4
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details
Rivet
6
Yamaha Motors
Rivet90269-07076-00
Required: 2
RIVET
Supersedes: 90269-07036-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
7
Required: 1
MUD GUARD COMP.
Price unavailable
Bolt With Washer
8
Yamaha Motors
Bolt With Washer90119-06018-00
Required: 2
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
NUT WITH WASHER
9
Yamaha Motors
NUT WITH WASHER95701-06500-00
Required: 2
NUT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details
Plate 1
10
Yamaha Motors
Plate 135R-21543-00-00
Required: 1
PLATE 1
Cross Ship
Leaves in 2-5 days
$12.99
$11.04
You save $1.95
More details
Screw with Washer
12
Yamaha Motors
Screw with Washer90159-05073-00
Required: 1
SCREW, WITH WASHER
Supersedes: 90159-05065-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
13
Required: 2
REFLECTOR, FRONT 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
