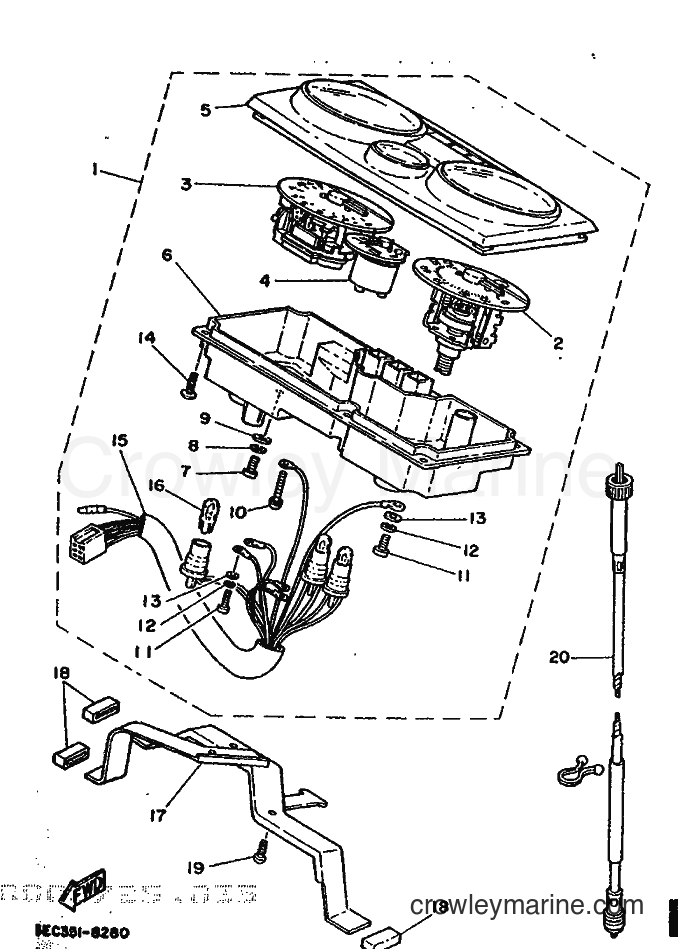

1990 Scooter CH50 - CH50 (3EC6) [999] INSTRUMENT PANEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CH50 (3EC6) [999] - INSTRUMENT PANEL
Change View:
1
Required: 1
METER ASSY
Price unavailable
2
Required: 1
SPEEDO. COMP.
Price unavailable
3
Required: 1
TACHOMETER ASSY
Price unavailable
4
Required: 1
FUEL METER ASSY
Price unavailable
5
Required: 1
METER COVER ASSY
Price unavailable
6
Required: 1
CASE, SPEEDOMETER LOWER
Price unavailable
Screw with Washer
10
Yamaha Motors
Screw with Washer90159-03102-00
Required: 3
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
Pan Head Screw
11
Yamaha Motors
Pan Head Screw98580-03010-00
Required: 3
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Spring Washer
12
Yamaha Motors
Spring Washer92990-03100-00
Required: 3
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Washer (3SX)
13
Yamaha Motors
Washer (3SX)92907-03600-00
Required: 3
WASHER, PLATE
Supersedes: 92902-03600-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Tapping Screw
14
Yamaha Motors
Tapping Screw97707-40614-00
Required: 6
SCREW, TAPPING
Supersedes: 97702-40514-00
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details
15
Required: 1
SOCKET CORD ASSY
Price unavailable
4G1-84744-00-XX
16
Yamaha Motors
4G1-84744-00-XX4G1-84744-00-00
Required: 3
BULB (12V-3.4W T-10)
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
17
Required: 1
BRACKET, METER 1
Price unavailable
18
Required: 3
DAMPER, BRACKET
Price unavailable
Truss Screw
19
Yamaha Motors
Truss Screw97707-50012-00
Required: 3
SCREW, TAPPING
Supersedes: 90167-05025-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
20
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable
Clamp
21
Yamaha Motors
Clamp90465-18147-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
