All diagrams for this model

1990 Scooter CH50 - CH50 (3EC6) [999] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

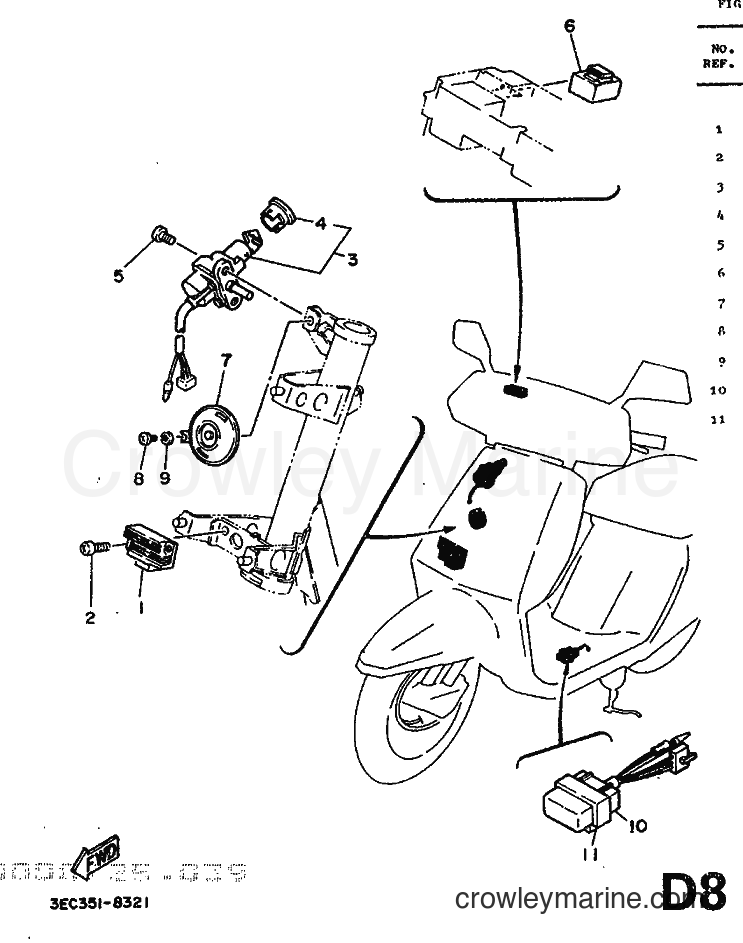

Yamaha Motors CH50 (3EC6) [999] - ELECTRICAL 1
Change View:
1
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
90105-06707-00
2
Yamaha Motors
90105-06707-0095023-06016-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.10
$1.78
You save $0.32
More details
3
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
4
Required: 1
CAP, SWITCH
Price unavailable
5
Required: 2
SCREW
Price unavailable
6
Required: 1
FLASHER RELAY ASSY
Price unavailable
7
Required: 1
HORN
Price unavailable
Pan Head Screw
8
Yamaha Motors
Pan Head Screw98516-06012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98506-06012-00
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
10
Required: 1
CONTROL UNIT ASSY
Price unavailable
Band
11
Yamaha Motors
Band17W-85546-00-00
Required: 1
BAND
Cross Ship
Leaves in 2-5 days
$1.77
$1.50
You save $0.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
