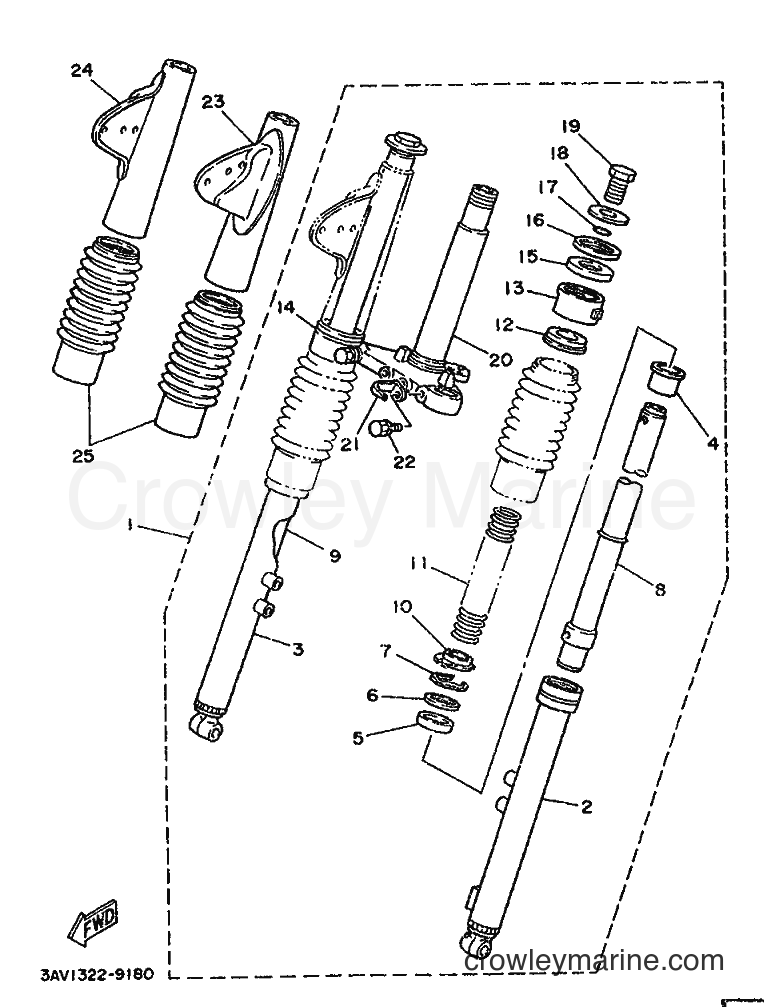

1989 Scooter FS1 - FS1 (3AV1) [999] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FS1 (3AV1) [999] - FRONT FORK
Change View:
1
Required: 1
FRONT FORK ASSY
Price unavailable
2
Required: 1
. TUBE, OUTER (LEFT)
Price unavailable
3
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
METAL,SLIDE 1
4
Yamaha Motors
METAL,SLIDE 1367-23125-60-00
Required: 2
. METAL, SLIDE 1
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
Oil Seal
5
Yamaha Motors
Oil Seal3VR-23145-00-00
Required: 2
. OIL SEAL
Supersedes: 1T8-23145-00-00
Cross Ship
Leaves in 2-5 days
$34.99
$29.74
You save $5.25
More details
Oil Seal Washer
6
Yamaha Motors
Oil Seal Washer367-23146-60-00
Required: 2
. WASHER, OIL SEAL
Cross Ship
Leaves in 2-5 days
$2.97
$2.52
You save $0.45
More details
7
Required: 2
CLIP, OIL SEAL
Price unavailable
8
Required: 1
. TUBE, INNER 1
Price unavailable
9
Required: 1
. TUBE, INNER 2
Price unavailable
10
Required: 2
. GUIDE, SPRING
Price unavailable
11
Required: 2
. SPRING, FRONT FORK
Price unavailable
UPPER SPRING SEAT
12
Yamaha Motors
UPPER SPRING SEAT209-23142-40-00
Required: 2
. SEAT, SPRING UPPER
Cross Ship
Leaves in 2-5 days
$1.59
$1.35
You save $0.24
More details
13
Required: 1
. COVER, OUTER 1
Price unavailable
14
Required: 1
. COVER, OUTER 2
Price unavailable
Tank Cap Gasket
15
Yamaha Motors
Tank Cap Gasket207-23163-00-00
Required: 2
. GASKET
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details
16
Required: 2
SEAT 2
Price unavailable
Tank Cap Gasket
17
Yamaha Motors
Tank Cap Gasket307-23114-00-00
Required: 2
. GASKET
Cross Ship
Leaves in 2-5 days
$10.99
$9.34
You save $1.65
More details
Cap Washer
18
Yamaha Motors
Cap Washer207-23112-00-00
Required: 2
. WASHER, CAP
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
CAP BOLT
19
Yamaha Motors
CAP BOLT395-23111-00-00
Required: 2
. BOLT, CAP
Cross Ship
Leaves in 2-5 days
$20.99
$17.84
You save $3.15
More details
20
Required: 1
. UNDER BRACKET COMP.
Price unavailable
Cable Holder 1
21
Yamaha Motors
Cable Holder 1260-23318-40-00
Required: 1
. HOLDER, CABLE 1
Cross Ship
Leaves in 2-5 days
$7.25
$6.16
You save $1.09
More details
Bolt
22
Yamaha Motors
Bolt1M3-23346-00-00
Required: 2
. BOLT 1
Cross Ship
Leaves in 2-5 days
$2.58
$2.19
You save $0.39
More details
23
Required: 1
COVER, UPPER 1
Price unavailable
24
Required: 1
COVER, UPPER 2
Price unavailable
25
Required: 2
BOOT
Price unavailable
25
Required: 2
BOOT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
