1988 Scooter LB50 - LB50 (3AR) [999] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

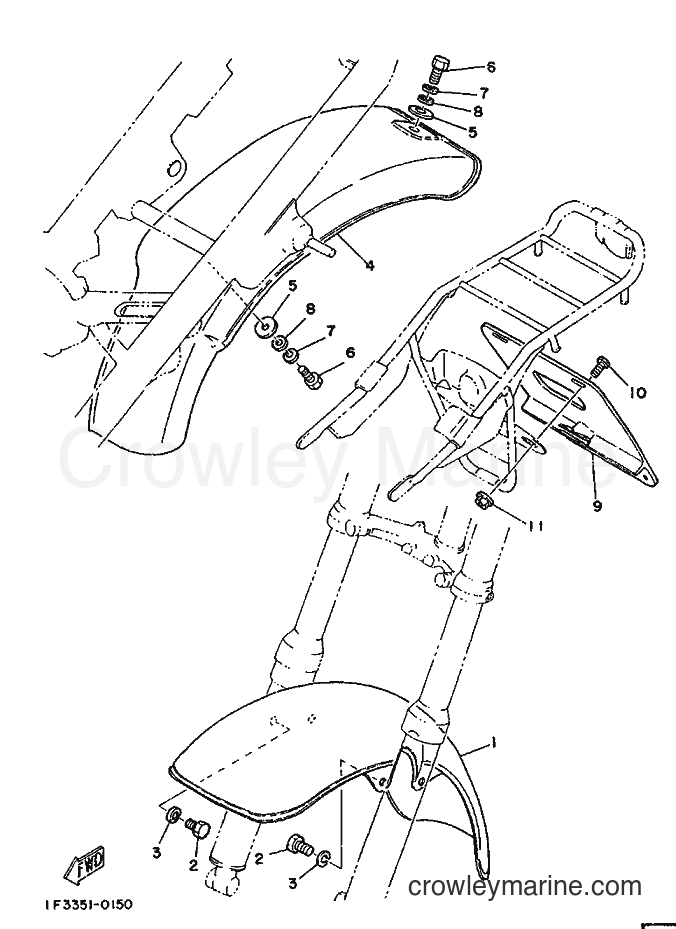

Yamaha Motors LB50 (3AR) [999] - FENDER
Change View:
Front Fender
1
Yamaha Motors
Front Fender441-21510-00-93
Required: 1
FRONT FENDER COMP.
Cross Ship
Leaves in 2-5 days
$93.54
$79.51
You save $14.03
More details
97013-06012-00
2
Yamaha Motors
97013-06012-0097003-06012-00
Required: 4
BOLT
Supersedes: 97001-06012-00
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
4
Required: 1
FENDER, REAR
Price unavailable
Plate Washer
5
Yamaha Motors
Plate Washer90201-06380-00
Required: 2
WASHER, PLATE
Supersedes: 90201-06067-00
Cross Ship
Leaves in 2-5 days
$0.65
$0.55
You save $0.10
More details
97013-06012-00
6
Yamaha Motors
97013-06012-0097003-06012-00
Required: 2
BOLT
Supersedes: 97001-06012-00
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
9
Required: 1
PLATE, NUMBER SUPPORT
Price unavailable
BOLT
10
Yamaha Motors
BOLT97011-06020-00
Required: 2
BOLT
Supersedes: 97001-06020-00
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details
NUT WITH WASHER
11
Yamaha Motors
NUT WITH WASHER95701-06500-00
Required: 2
NUT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
