1987 Scooter SH50 - SH50 (2KH) [999] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

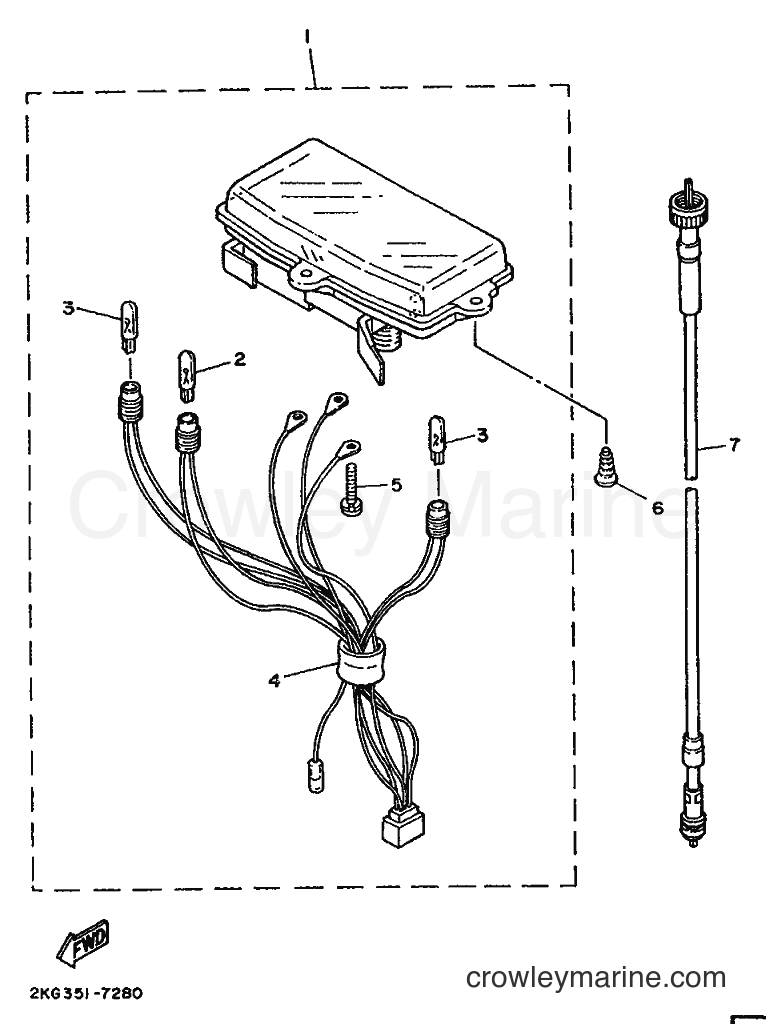

Yamaha Motors SH50 (2KH) [999] - METER
Change View:
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
Obsolete Yamaha Part
2
Yamaha Motors
Obsolete Yamaha Part3GM-83517-00-00
Required: 1
. BULB
Supersedes: 1YT-83517-00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
4G1-84744-00-XX
3
Yamaha Motors
4G1-84744-00-XX4G1-84744-00-00
Required: 2
. BULB (12V-5W)
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
4
Required: 1
. SOCKET CORD ASSY
Price unavailable
Screw with Washer
5
Yamaha Motors
Screw with Washer90159-03102-00
Required: 1
. SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
Tapping Screw
6
Yamaha Motors
Tapping Screw90167-05030-00
Required: 3
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Speedometer Cable Assembly
7
Yamaha Motors
Speedometer Cable Assembly3KJ-83550-11-00
Required: 1
SPEEDOMETER CABLE ASSY
Supersedes: 52W-83550-00-00
Cross Ship
Leaves in 2-5 days
$25.99
$22.09
You save $3.90
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
