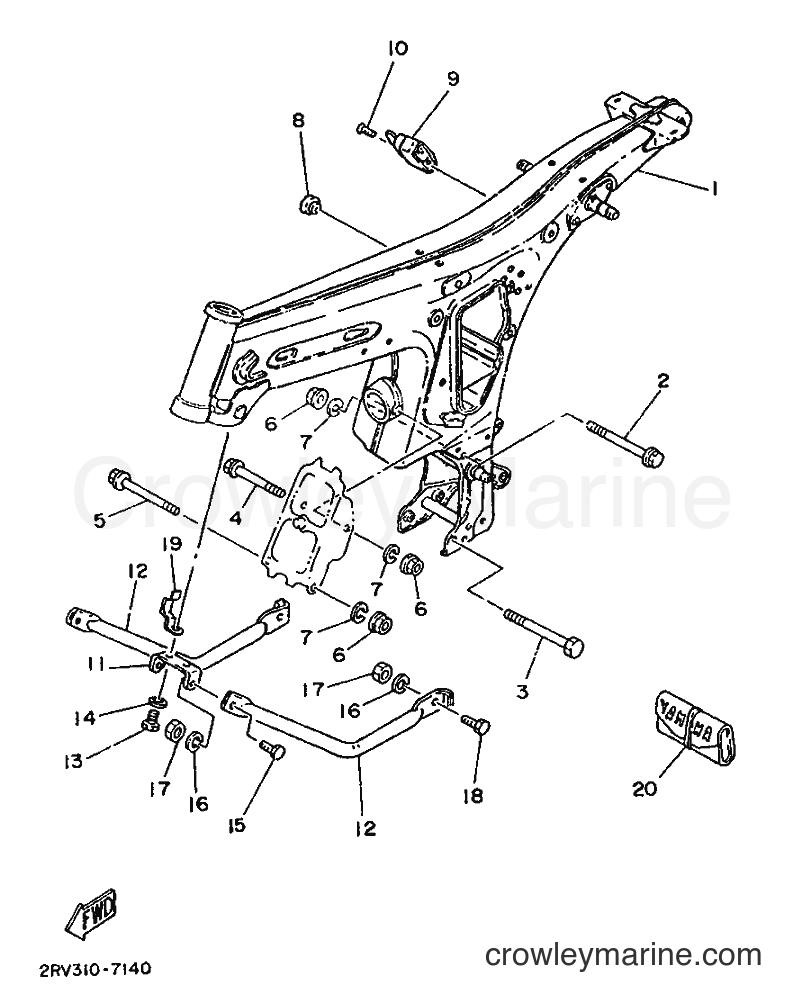

1987 Scooter FS1 - FS1 (2RV) [999] FRAME diagram
![Yamaha Motors FS1 (2RV) [999] - FRAME](https://cdn.crowleymarine.com/yamaha/UchdJPhA.png)
1
Required: 1
FRAME COMP.
Price unavailable
2
Yamaha Motors
Flange Bolt (4EM)95817-08120-00
Required: 1
BOLT, FLANGE
Supersedes: 95811-08120-00
$4.67
You save $0.82
3
Yamaha Motors
BOLT90101-08538-00
Required: 1
BOLT
Supersedes: 90101-08285-00
$11.47
You save $2.02
4
Yamaha Motors
Flange Bolt95817-08090-00
Required: 1
BOLT, FLANGE
Supersedes: 95811-08090-00
$5.09
You save $0.90
5
Yamaha Motors
95817-08100-0095811-08100-00
Required: 1
BOLT, FLANGE
Supersedes: 95821-08100-00
$8.07
You save $1.42
6
Yamaha Motors
Flange Nut95704-08500-00
Required: 3
NUT, FLANGE
Supersedes: 95701-08500-00
In stock
Only 5 remaining
$8.07
You save $1.42
7
Yamaha Motors
Spring Washer92990-08100-00
Required: 3
WASHER, SPRING
$4.76
You save $0.84
8
Yamaha Motors
Grommet90480-14153-00
Required: 1
GROMMET
Supersedes: 90480-13203-00
$8.92
You save $1.57
9
Required: 1
HELMET HANGER ASSY
Price unavailable
10
Yamaha Motors
Flat Head Screw98707-06030-00
Required: 1
SCREW, FLAT HEAD
Supersedes: 92701-06030-00
In stock
Only 3 remaining
$6.79
You save $1.20
11
Required: 1
BRACKET
Price unavailable
12
Required: 2
DOWNTUBE
Price unavailable
In stock
Only 2 remaining
$1.78
You save $0.32
14
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$2.93
You save $0.52
In stock
Only 3 remaining
$1.06
You save $0.19
16
Yamaha Motors
Spring Washer92990-08100-00
Required: 4
WASHER, SPRING
$4.76
You save $0.84
17
Yamaha Motors
Nut95333-08600-00
Required: 4
NUT
Supersedes: 95303-08600-00
In stock
Only 1 remaining
$3.23
You save $0.57
18
Yamaha Motors
Bolt97013-08030-00
Required: 2
BOLT
Supersedes: 97313-08030-00
$3.23
You save $0.57
19
Required: 1
GUIDE, CABLE
Price unavailable
20
Required: 1
TOOL KIT
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
