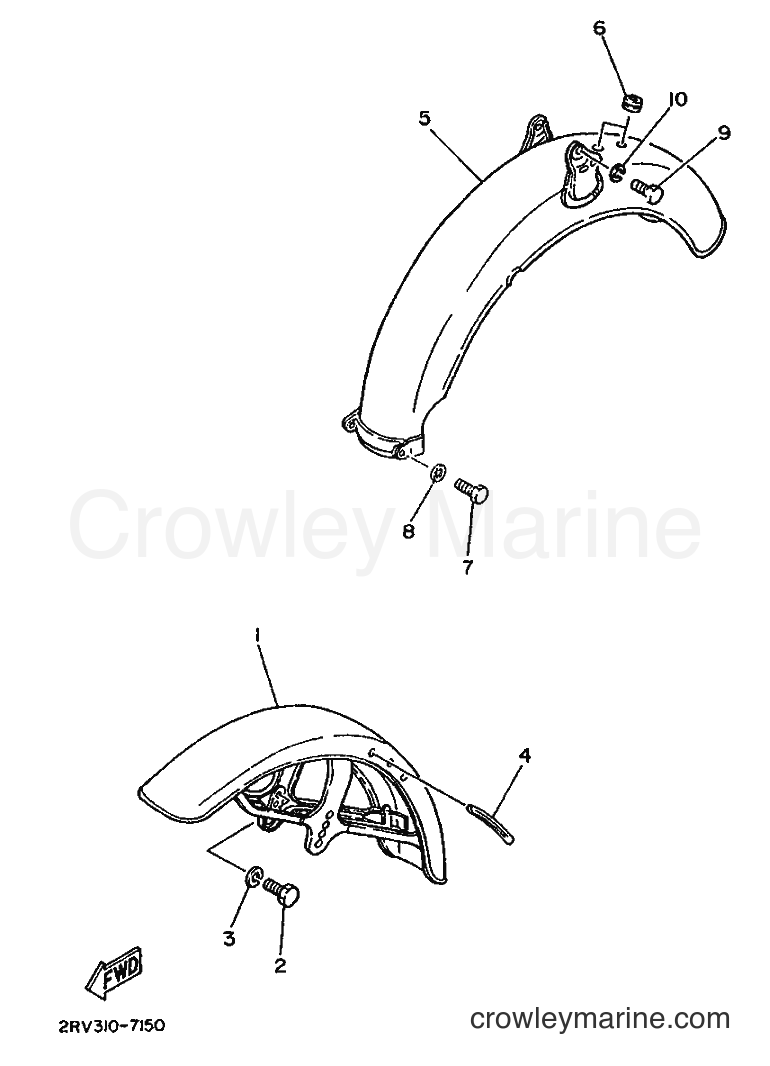

1987 Scooter FS1 - FS1 (2RV) [999] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FS1 (2RV) [999] - FENDER
Change View:
1
Required: 1
FRONT FENDER COMP.
Price unavailable
Bolt
2
Yamaha Motors
Bolt97013-08012-00
Required: 4
BOLT
Supersedes: 97301-08012-00
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
Spring Washer
3
Yamaha Motors
Spring Washer92990-08100-00
Required: 4
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$5.60
$4.76
You save $0.84
More details
PAD,CABLE
4
Yamaha Motors
PAD,CABLE122-21517-00-00
Required: 1
PAD, CABLE
Cross Ship
Leaves in 2-5 days
$0.60
$0.51
You save $0.09
More details
5
Required: 1
REAR FENDER COMP.
Price unavailable
Grommet
6
Yamaha Motors
Grommet90480-13016-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
BOLT, HEXAGON DEEP RECESS
7
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 2
BOLT
Supersedes: 97313-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
Spring Washer
10
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$5.60
$4.76
You save $0.84
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
