All diagrams for this model

1987 Scooter FS1 - FS1 (2RV) [999] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

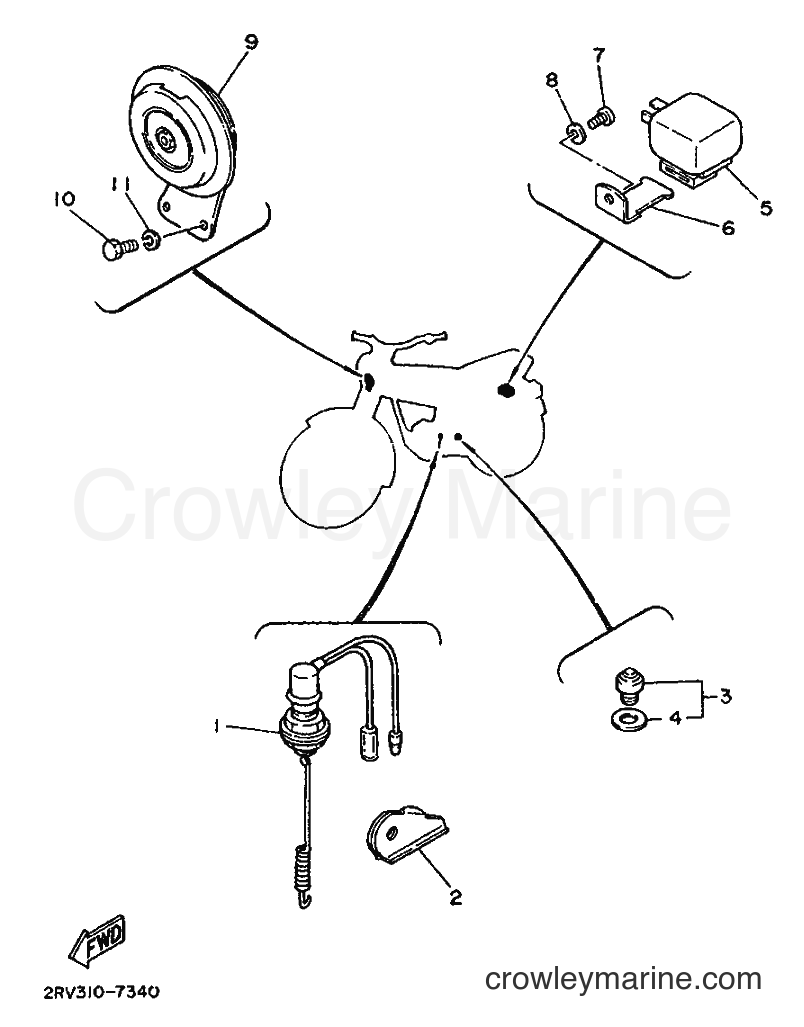

Yamaha Motors FS1 (2RV) [999] - ELECTRICAL 2
Change View:
STOP SWITCH ASSEMBLY
1
Yamaha Motors
STOP SWITCH ASSEMBLY205-82530-01-00
Required: 1
STOP SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Stop Switch Stay
2
Yamaha Motors
Stop Switch Stay205-82539-00-00
Required: 1
STAY, STOP SWITCH
Cross Ship
Leaves in 2-5 days
$2.17
$1.84
You save $0.33
More details
136-82540-02-00
3
Yamaha Motors
136-82540-02-00136-82540-00-00
Required: 1
NEUTRAL SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$16.99
$14.44
You save $2.55
More details
Plate Washer
4
Yamaha Motors
Plate Washer90201-12790-00
Required: 1
. GASKET
Supersedes: 90430-11034-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
5
Required: 1
FLASHER RELAY ASSY
Price unavailable
6
Required: 1
BRACKET, FLASHER RELAY 1
Price unavailable
Screw
7
Yamaha Motors
Screw98517-06012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92501-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.49
You save $0.62
More details
Horn
9
Yamaha Motors
Horn2A7-83371-10-00
Required: 1
HORN
Cross Ship
Leaves in 2-5 days
$50.99
$43.34
You save $7.65
More details
97011-06010-00
10
Yamaha Motors
97011-06010-0097021-06010-00
Required: 2
BOLT
Supersedes: 97301-06010-00
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
