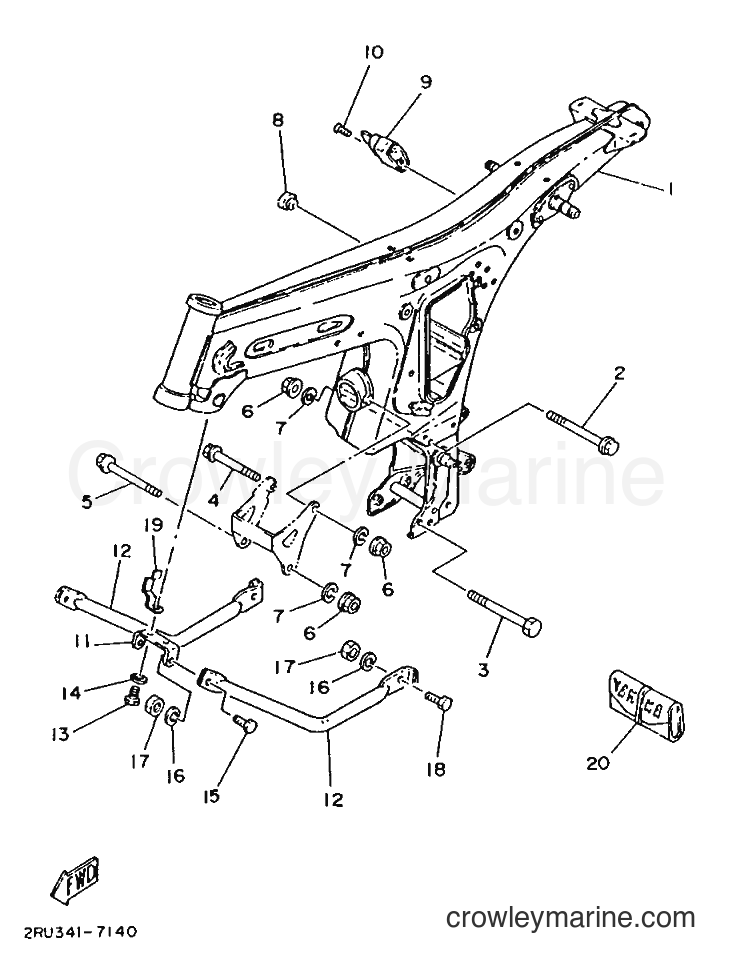

1987 Scooter FS1 - FS1 (2RU) [999] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FS1 (2RU) [999] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
Flange Bolt (4EM)
2
Yamaha Motors
Flange Bolt (4EM)95817-08120-00
Required: 1
BOLT, FLANGE
Supersedes: 95811-08120-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
BOLT
3
Yamaha Motors
BOLT90101-08538-00
Required: 1
BOLT
Supersedes: 90101-08285-00
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
Flange Bolt
4
Yamaha Motors
Flange Bolt95817-08090-00
Required: 1
BOLT, FLANGE
Supersedes: 95811-08090-00
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
95817-08100-00
5
Yamaha Motors
95817-08100-0095811-08100-00
Required: 1
BOLT, FLANGE
Supersedes: 95821-08100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Spring Washer
7
Yamaha Motors
Spring Washer92990-08100-00
Required: 3
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$5.60
$4.48
You save $1.12
More details
Grommet
8
Yamaha Motors
Grommet90480-14153-00
Required: 1
GROMMET
Supersedes: 90480-13203-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
9
Required: 1
HELMET HANGER ASSY
Price unavailable
11
Required: 1
BRACKET
Price unavailable
12
Required: 2
DOWNTUBE
Price unavailable
Spring Washer
16
Yamaha Motors
Spring Washer92990-08100-00
Required: 4
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$5.60
$4.48
You save $1.12
More details
Bolt
18
Yamaha Motors
Bolt97013-08030-00
Required: 2
BOLT
Supersedes: 97313-08030-00
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
19
Required: 1
GUIDE, CABLE
Price unavailable
20
Required: 1
TOOL KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
