All diagrams for this model

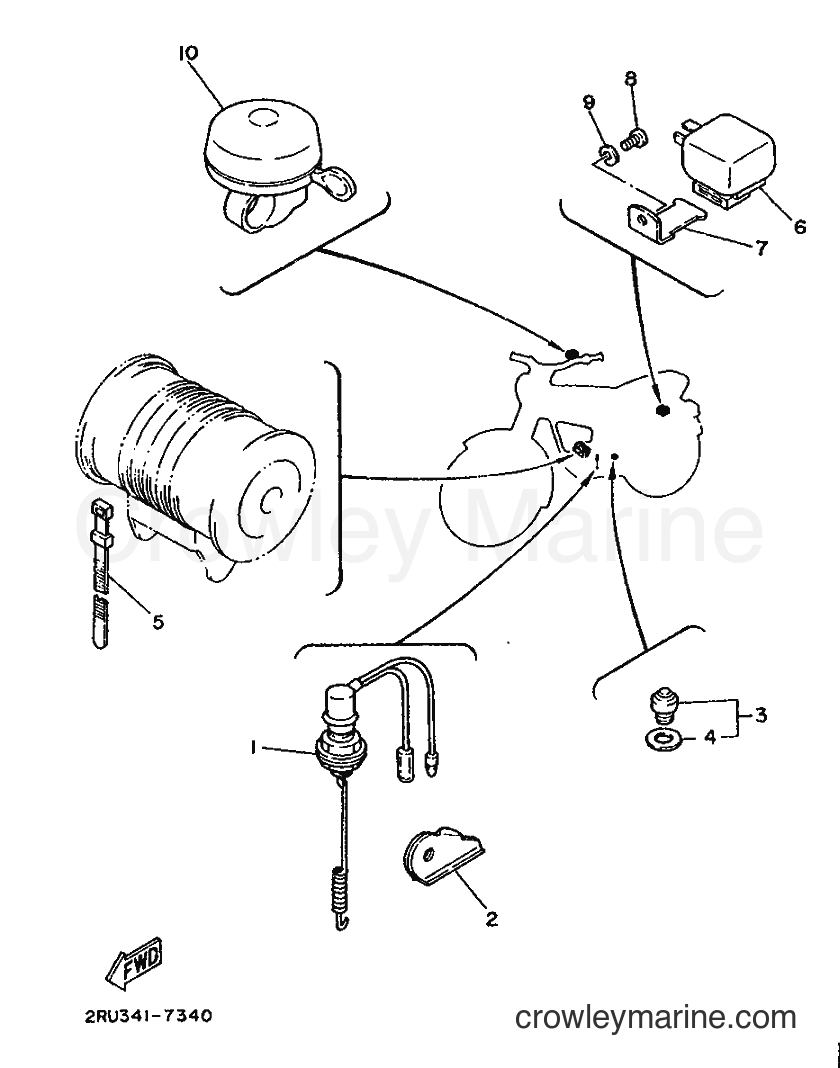

1987 Scooter FS1 - FS1 (2RU) [999] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FS1 (2RU) [999] - ELECTRICAL 2
Change View:
STOP SWITCH ASSEMBLY
1
Yamaha Motors
STOP SWITCH ASSEMBLY205-82530-01-00
Required: 1
STOP SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Stop Switch Stay
2
Yamaha Motors
Stop Switch Stay205-82539-00-00
Required: 1
STAY, STOP SWITCH
Cross Ship
Leaves in 2-5 days
$2.17
$1.84
You save $0.33
More details
136-82540-02-00
3
Yamaha Motors
136-82540-02-00136-82540-00-00
Required: 1
NEUTRAL SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$16.99
$14.44
You save $2.55
More details
Plate Washer
4
Yamaha Motors
Plate Washer90201-12790-00
Required: 1
. GASKET
Supersedes: 90430-11034-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Switch Cord Band
5
Yamaha Motors
Switch Cord Band437-83936-01-00
Required: 1
BAND, SWITCH CORD
Supersedes: 437-83936-00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
6
Required: 1
FLASHER RELAY ASSY
Price unavailable
7
Required: 1
BRACKET, FLASHER RELAY 1
Price unavailable
Screw
8
Yamaha Motors
Screw98517-06012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92501-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.60
You save $0.50
More details
10
Required: 1
BELL
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
