All diagrams for this model

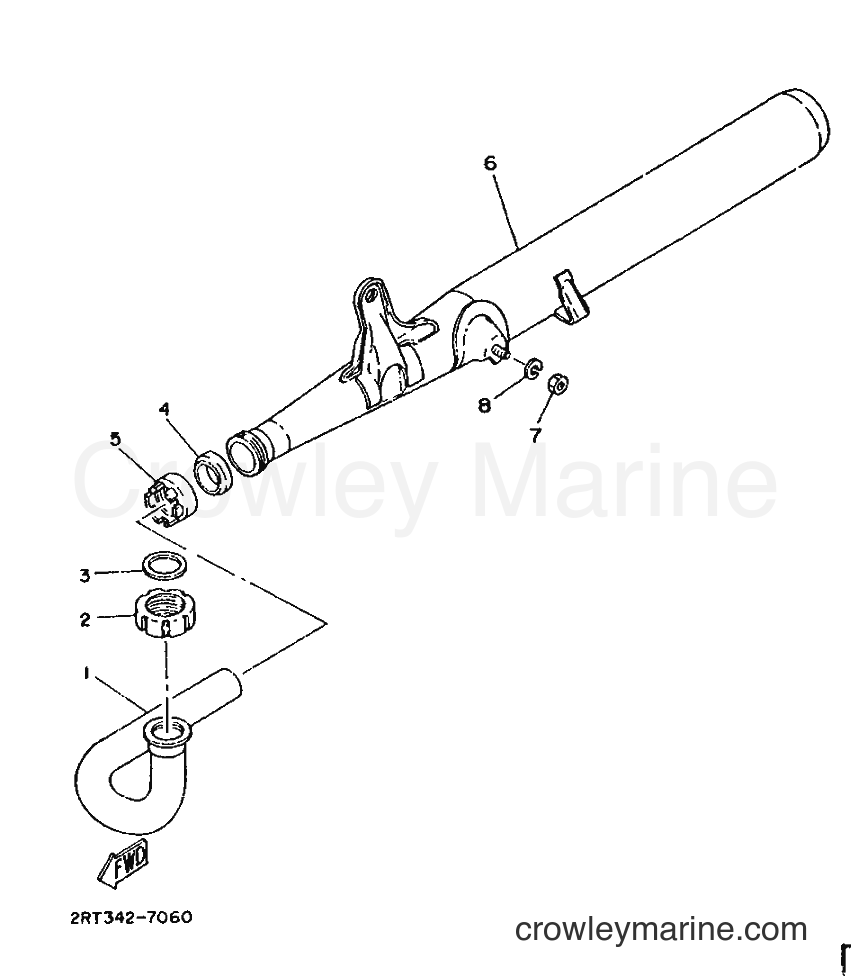

1987 Scooter FS1 - FS1 (2RT) [999] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FS1 (2RT) [999] - EXHAUST
Change View:
1
Required: 1
PIPE, EXHAUST 1
Price unavailable
RING NUT
2
Yamaha Motors
RING NUT1L4-14612-00-00
Required: 1
NUT, RING
Cross Ship
Leaves in 2-5 days
$17.99
$15.29
You save $2.70
More details
EXHAUST PIPE GASKET
3
Yamaha Motors
EXHAUST PIPE GASKET3MT-14613-00-00
Required: 1
GASKET, EXHAUST PIPE
Supersedes: 132-14613-00-00
Cross Ship
Leaves in 2-5 days
$11.99
$10.19
You save $1.80
More details
4
Required: 1
GASKET, MUFFLER
Price unavailable
5
Required: 1
NUT, MUFFLER JOINT
Price unavailable
6
Required: 1
MUFFLER ASSY 1
Price unavailable
Spring Washer
8
Yamaha Motors
Spring Washer92990-08100-00
Required: 1
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$5.60
$4.76
You save $0.84
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
