1987 Scooter DT80LC - DT80LC (2RA) [999] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

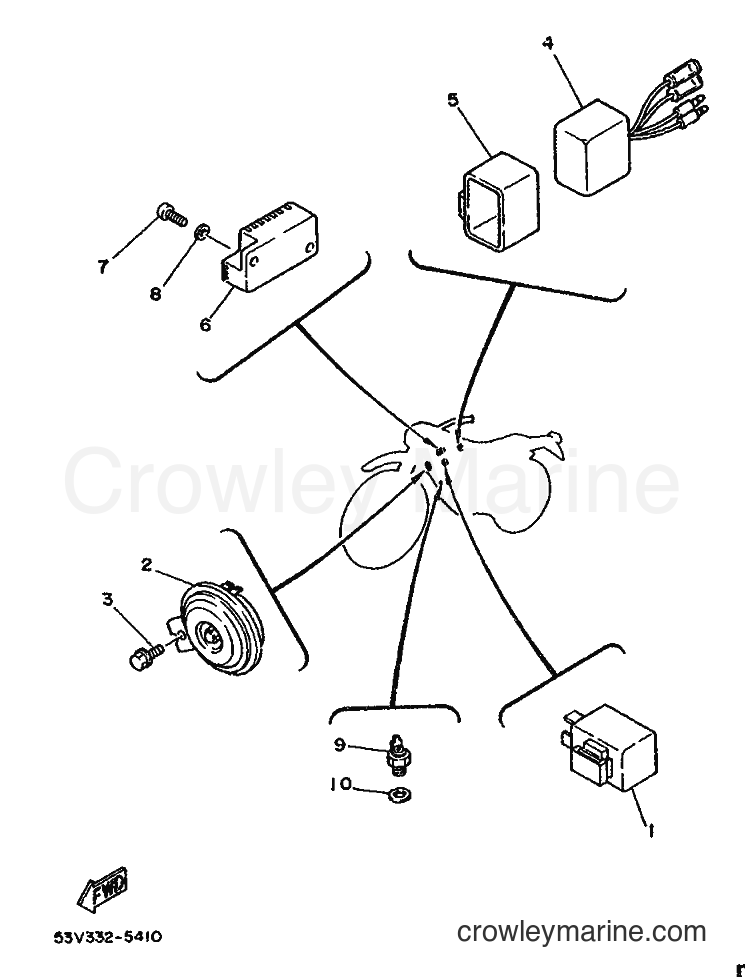

Yamaha Motors DT80LC (2RA) [999] - ELECTRICAL 2
Change View:
1
Required: 1
FLASHER RELAY ASSY
Price unavailable
Horn
2
Yamaha Motors
Horn4LR-83371-11-00
Required: 1
HORN
Supersedes: 1HX-83371-00-00
Cross Ship
Leaves in 2-5 days
$53.99
$45.89
You save $8.10
More details
95811-06010-00
3
Yamaha Motors
95811-06010-0095801-06010-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
4
Required: 1
C.D.I. UNIT ASSY
Price unavailable
5
Required: 1
BAND
Price unavailable
6
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
98517-05012-00
7
Yamaha Motors
98517-05012-0098501-05012-00
Required: 2
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
9
Required: 1
THERMO UNIT
Price unavailable
Tank Cap Gasket
10
Yamaha Motors
Tank Cap Gasket90430-10005-00
Required: 1
GASKET
Supersedes: 90430-10164-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
